Tag Archives: STATIC

PUBLIC

Posted on by vivaclipper

PUBLIC

Create and initialize public memory variables and arrays

Syntax

       PUBLIC <identifier> [[:= <initializer>], ... ]

Arguments

<identifier> is the name of a public variable or array to create. If the <identifier> is followed by square brackets ([ ]), it is created as an array. If the <identifier> is an array, the syntax for specifying the number of elements for each dimension can be array[<nElements>, <nElements2>, …] or array[<nElements>][<nElements2>]…. The maximum number of elements per dimension is 4096. The maximum number of dimensions per array is limited only by available memory.

<initializer> is the optional assignment of a value to a new public variable. Array identifiers, however, cannot be given values with an <initializer>. An <initializer> for a public variable consists of the inline assignment operator (:=) followed by any valid Harbour expression including a literal array. Except for arrays, if no <initializer> is specified, public variables are initialized to false (.F.). This is an exception to the general rule that uninitialized variables are NIL. With arrays, however, the initial value of each element is NIL.

A list of variables and arrays can be created and, optionally, initialized with one PUBLIC statement if each definition is separated by a comma.

Description

The PUBLIC statement creates variables and arrays visible to all procedures and user-defined functions in a program. Public variables exist for the duration of the program or until explicitly released with CLEAR ALL, CLEAR MEMORY, or RELEASE. Declaring private, local, or static variables or arrays with the same name as existing public variables temporarily hides those public variables until the overriding variables are released or are no longer visible. An attempt to create a public variable with the same name as an existing and visible private variable is simply ignored (see Notes below for an exception).

Attempting to specify a PUBLIC variable that conflicts with a previous FIELD, LOCAL, or STATIC declaration of the same name results in a fatal compiler error. This is true regardless of the scope of the declaration.

PUBLIC statements are executable statements and, therefore, must be specified within the body of a procedure or user-defined function definition. They also must follow all compile-time declarations, such as FIELD, LOCAL, MEMVAR, and STATIC.

The maximum number of public and private variables and arrays that can simultaneously exist in a single program is 2048.

For more information on variable declarations and scoping, refer to the Variables section in the “Basic Concepts” chapter.

Notes

. Public array name conflicts with existing private variables: The statement, PUBLIC x[10], will not create the public array x if there is already a private or public variable x. It will, however, destroy the contents of the existing x, replacing it with a reference to a ten-element array.

Examples

       .  This example creates two PUBLIC arrays and one PUBLIC
          variable:
          PUBLIC aArray1[10, 10], var2
          PUBLIC aArray2[20][10]
       .  The following PUBLIC statements create variables and
          initialize them with values:
          PUBLIC cString := SPACE(10), cColor := SETCOLOR()
          PUBLIC aArray := {1, 2, 3}, aArray2 := ARRAY(12, 24)

Seealso

LOCAL, MEMVAR, PARAMETERS, PRIVATE, STATIC

PROCEDURE

Posted on by vivaclipper

PROCEDURE

Declare a procedure name and formal parameters

Syntax

       [STATIC] PROCEDURE <idProcedure> [(<idParam list>)]
              [FIELD <idField list> [IN <idAlias>]
              [LOCAL <identifier> [[:= <initializer>], ... ]]
              [MEMVAR <identifier list>]
              [STATIC <identifier> [[:= <initializer>], ... ]]
              .
              . <executable statements>
              .
              [RETURN]

Arguments

<idProcedure> is the name of the procedure to be declared. Procedure names can be any length, but only the first 10 characters are significant. Names can contain any combination of characters, numbers, or underscores, but leading underscores are reserved.

<idParam list> is the declaration of one or more parameter variables. Variables specified in this list are declared local.

STATIC PROCEDURE declares a procedure that can be called only by procedures and user-defined functions declared in the same program (.prg) file.

FIELD declares a list of identifiers, <idField list>, to use as field names whenever encountered. If the IN clause is specified, referring to the declared name, <idAlias> is a reference to the appropriate work area of the specified database.

LOCAL declares and optionally initializes a list of variables or arrays whose visibility and lifetime is the current procedure.

<identifier>, <identifier list> is a label or labels used as variable or array names. If the <identifier> is followed by square brackets ([ ]), it is created as an array. If the <identifier> is an array, the syntax for specifying the number of elements for each dimension can be array[<nElements>, <nElements2>, …] or array[<nElements>][<nElements2>]… The maximum number of elements per dimension is 4096. The maximum number of dimensions per array is limited only by available memory.

<initializer> is the value to which an optional inline assignment sets the <identifier> variable–essentially, the assignment operator, (:=) –followed by any valid Harbour expression, including a literal array. If no <initializer> is specified, variables are initialized to NIL. In the case of arrays, all element are initialized to NIL.

MEMVAR declares a list of identifiers, <identifier list>, to use as private or public memory variables or arrays whenever encountered.

STATIC declares and, optionally, initializes a list of variables or arrays whose visibility is the current procedure and whose lifetime is the duration of the program.

RETURN passes control back to the calling procedure or user-defined function. If a RETURN is not specified, control passes back to the calling routine when the procedure definitions ends. In all cases, the compiler terminates the procedure definition when it encounters another PROCEDURE statement, FUNCTION statement, or end of file character.

Description

The PROCEDURE statement declares a procedure and an optional list of local variables to receive parameters passed from a calling routine. A procedure is a subprogram comprised of a set of declarations and statements executed whenever you refer to <idProcedure>, followed by an open and close parentheses pair or with the DO statement. A procedure definition begins with a PROCEDURE statement and ends with the next PROCEDURE statement, FUNCTION statement, or end of file.

Procedures that encapsulate computational blocks of code provide readability and modularity, isolate change, and help manage complexity.

A procedure in Harbour is the same as a user-defined function, with the exception that it always returns NIL. Each procedure must begin with a PROCEDURE statement and may, optionally, contain a RETURN statement to return control to the calling procedure or user-defined function. A RETURN statement, however, is not required. Procedure declarations cannot be nested within other procedure definitions.

The visibility of procedure names falls into two classes. Procedures that are visible anywhere in a program are referred to as public procedures and declared with a PROCEDURE statement. Procedures that are visible only within the current program (.prg) file are referred to as static procedures and declared with a STATIC PROCEDURE statement. Static procedures have filewide scope.

Static procedures are quite useful for a number of reasons. First, they limit visibility of a procedure name thereby restricting access to the procedure. Because of this, subsystems defined within a single program (.prg) file can provide an access protocol with a series of public procedures and conceal the implementation details of the subsystem within static procedures and functions. Second, since the static procedure references are resolved at compile time, they preempt references to public procedures and functions which are resolved at link time. This ensures that, within a program file, a reference to a static procedure executes that procedure if there is a name conflict with a public procedure or function.

For more information on procedures, variable declarations, and parameter passing, refer to the “Basic Concepts” chapter.

Notes

. Calling a procedure: There are two ways to call a procedure in Harbour. The first and preferred way is the function-calling convention. Here you call the procedure as you would a Harbour function on a line by itself:

<idProcedure>([<argument list>])

The second and obsolete way is the command-calling convention using the DO…WITH command. The two methods of calling procedures differ only in the default method of passing parameters. The function- calling convention passes variables by value as a default, whereas the command-calling convention passes them by reference as a default.

A procedure can also be called as an aliased expression if it is prefaced with an alias and invoked using the function-calling convention, like this: <idAlias> ->(<idProcedure>(<argument list>)) When called as an aliased expression, the work area associated with <idAlias> is selected, the procedure is executed, and then the original work area is reselected. Like an expression or function, an aliased procedure can be specified on a line by itself. A procedure in Harbour may call itself recursively. This means you can call a procedure in the same procedure definition.

. Parameters: Procedures like user-defined functions can receive parameters passed from a calling procedure, user-defined function, or the DOS command line. A parameter is a place for a value or reference. In Harbour there are two ways to receive parameters: a list of local variable names can be declared as a part of the PROCEDURE declaration (referred to as formal parameters), or a list of private variables can be specified in a separate PARAMETERS statement. Note that you cannot mix a declaration of formal parameters with a PARAMETERS statement. Attempting this will cause a fatal compiler error.

Procedures receive parameters in the order passed. In Harbour the number of parameters need not match the number of arguments passed. Arguments can be skipped or left off the end of the argument list. A parameter not receiving a value or reference is initialized to NIL. If arguments are specified, PCOUNT() returns the position of the last argument passed.

Parameters specified in a procedure can receive arguments passed by value or by reference. The default method for expressions and variables depends on the calling convention. With the function-calling convention, the default passing method for expressions and variables is by value. This includes variables containing references to arrays and objects. With the command- calling convention, the default method for passing variables is by reference except for field variables, which are always passed by value. Whenever a field variable is passed, it must be specified enclosed in parentheses unless declared with the FIELD statement. Failure to do so will generate a runtime error.

Examples

       .  This example shows a skeleton of a typical Harbour
          procedure that uses lexical variables:
          PROCEDURE Skeleton( cName, cClassRoom, nBones, ;
                                  nJoints )
             LOCAL nCrossBones, aOnHand := {"skull", ;
                                           "metacarpals"}
             STATIC nCounter := 0
             .
             . <executable statements>
             .
             RETURN
       .  This example determines whether an argument was skipped by
          comparing the parameter to NIL:
          PROCEDURE MyProc( param1, param2, param3 )
             IF param2 != NIL
                param2 := "default value"
             ENDIF
             .
             . <statements>
             .
             RETURN
       .  This example invokes the procedure, UpdateAmount(), as an
          aliased expression:
          USE Invoices NEW
          USE Customer NEW
          Invoices->(UpdateAmount(Amount + Amount * nInterest))

Seealso

FUNCTION, LOCAL, PARAMETERS, PCOUNT(), RETURN, STATIC

PRIVATE

Posted on by vivaclipper

Create and initialize private memory variables and arrays

Syntax

       PRIVATE <identifier> [[:= <initializer>], ... ]

Arguments

<identifier> is the name of a private variable or array to create. If the <identifier> is followed by square brackets ([ ]), an array is created and assigned to the <identifier>. When the <identifier> specification indicates an array, the syntax for specifying the number of elements for each dimension can be array[<nElements>, <nElements2>, …] or array[<nElements>][<nElements2>]… The maximum number of elements per dimension is 4096. The maximum number of dimensions is limited only by available memory.

<initializer> is the optional assignment of a value to a new private variable. An array cannot be given values with an <initializer>. An <initializer> for a private variable consists of the inline assignment operator (:=) followed by any valid Harbour expression including a literal array. If no explicit <initializer> is specified, the variable is initialized to NIL. In the case of an array, each element is initialized to NIL.

You can create and, optionally, initialize a list of variables and arrays with one PRIVATE statement if the definitions are separated by commas.

Description

The PRIVATE statement creates variables and arrays visible within the current and invoked procedures or user-defined functions. This class of variable is said to have dynamic scope. Private variables exist for the duration of the active procedure or until explicitly released with CLEAR ALL, CLEAR MEMORY, or RELEASE. When a private variable or array is created, existing and visible private and public variables of the same name are hidden until the current procedure or user-defined function terminates.

Attempting to specify a PRIVATE variable that conflicts with a previous FIELD, LOCAL, or STATIC declaration of the same name results in a fatal compiler error. This is true regardless of the scope of the declaration.

PRIVATE statements are executable statements and, therefore, must be specified within the body of a procedure or user-defined function and must follow all variable declarations, such as FIELD, LOCAL, MEMVAR, and STATIC.

In addition to the PRIVATE statement, private variables are also created in two other ways:

. Assignment to a variable that does not exist or is not visible will create a private variable .

Parameters received using the PARAMETERS statement are created as private variables with the same lifetime and visibility.

No more than 2048 private and public variables and arrays can simultaneously exist in a single program.

For more information on variable declarations and scoping, refer to the Variables section in the “Basic Concepts” chapter.

Notes

. Compatibility: The ALL, LIKE, and EXCEPT clauses of the PRIVATE statement supported by other dBASE dialects are not supported.

Examples

       .  This example creates two PRIVATE arrays and three other
          PRIVATE variables:
          PRIVATE aArray1[10], aArray2[20], var1, var2, var3
       .  This example creates a multidimensional private array using
          each element addressing convention:
          PRIVATE aArray[10][10][10], aArray2[10, 10, 10]
       .  This example uses PRIVATE statements to create and initialize
          arrays and variables:
          PRIVATE aArray := { 1, 2, 3, 4 }, ;
                aArray2 := ARRAY(12, 24)
          PRIVATE cChar := SPACE(10), cColor := SETCOLOR()

Seealso

FIELD, LOCAL, MEMVAR, PARAMETERS, PUBLIC, STATIC

PARAMETERS

Posted on by vivaclipper

PARAMETERS

Declares private parameter variables

Syntax

PARAMETERS <idPrivate list>

Arguments

<idPrivate list> is one or more parameter variables separated by commas.

The number of receiving variables does not have to match the number of arguments passed by the calling procedure or user-defined function.

Description

The PARAMETERS statement declares private variables to receive passed values or references. Receiving variables are referred to as parameters. The values or references actually passed by a procedure or user-defined function invocation are referred to as arguments.

When a PARAMETERS statement executes, all variables in the parameter list are created as private variables and all public or private variables with the same names are hidden until the current procedure or user-defined function terminates. A PARAMETERS statement is an executable statement and, therefore, can occur anywhere in a procedure or user-defined function, but must follow all compile-time variable declarations, such as FIELD, LOCAL, MEMVAR, and STATIC.

Parameters can also be declared as local variables if specified as a part of the PROCEDURE or FUNCTION declaration statement (see the example). Parameters specified in this way are referred to as formal parameters. Note that you cannot specify both formal parameters and a PARAMETERS statement with a procedure or user-defined function definition. Attempting to do this results in a fatal compiler error and an object file is not generated.

In Harbour the number of arguments and parameters do not have to match. If you specify more arguments than parameters, the extra arguments are ignored. If you specify fewer arguments than parameters, the extra parameters are created with a NIL value. If you skip an argument, the corresponding parameter is initialized to NIL. The PCOUNT() function returns the position of the last argument passed in the list of arguments. This is different from the number of parameters passed since it includes skipped parameters.

Examples

     .  This user-defined function receives values passed into private
        parameters with a PARAMETERS statement:

        FUNCTION MyFunc
           PARAMETERS cOne, cTwo, cThree
           ? cOne, cTwo, cThree
           RETURN NIL

     .  This example is similar, but receives values passed into local
        variables by declaring the parameter variables within the FUNCTION
        declaration:

        FUNCTION MyFunc( cOne, cTwo, cThree )
           ? cOne, cTwo, cThree
           RETURN NIL

See Also

 FUNCTION, LOCAL, PCOUNT(), PRIVATE, PROCEDURE, STATIC

MEMVAR

Posted on by vivaclipper

MEMVAR

Declares private and public variables and arrays.

Syntax

      MEMVAR <xVar>

Arguments

<xVar> Memory variable Name

Description

This command tells the compiler to resolve any reference to a memory variable designated within this list s if it possessed an explicit memory variable alias with either the M-> or MEMVAR-> prefix.Only those memory variables that do not contain any such explicit are affected by this command. Those memory variabls within macro expansions are not affected by this command.

The MEMVAR declaration must apear before any executable commands;it is similat to the LOCAL, STATIC, FIELD, PARAMETERS, FUNCTION, and PROCEDURE commands statements.

Examples

      MEMVAR y AS NUMERIC
      PROCEDURE Main()
         LOCAL n, lVar

         n := iif( lVar, "A", 3 )
         n := 2
         n := "a"
         n := seconds() + 2
         n := int( seconds() + 2 )
         y := n
         ? y
         RETURN

Tests

      See tests/testwarn.prg for more examples

Compliance

Clipper

Platforms

All

Files

None.

Seealso

LOCAL, STATIC, FIELD, PRIVATE, PUBLIC

LOCAL

Posted on by vivaclipper

LOCAL

Initializes a local memory variable or array

Syntax

      LOCAL <xVar> [:= <xInit> ]

Arguments

<xVar> Name of a memory variable or array.

<xInit> Value to be assinged to a variable or array

Description

This command created a LOCAL memory variable or array. The name of either is specified in <xVar>. If more then one variable is being initialized with the LOCAL command, separate each entry with a comma. If a variable or an array is to be assingned a start-up value, that expression may be specified in <xInit> and folling. Is Strong type compile mode is used, the Compiler will check if the value recived matchs the type specified in <xType>.

LOCAL varibles are symbols generated at run time and are resolved at compile time. The visibility and life span of a LOCAL variable or array is limited to the function or procedure in which it is defined.

No macro expansions are allowed in the LOCAL declaration statement.

No Harbour command other then FUNCTION, PROCEDURE, PUBLIC, PRIVATE, PARAMETERS, MEMVAR, STATIC and FIELD, may precede the LOCAL command.

LOCAL array reference may not be initialized (i.e., assigned values) on the same command line as the LOCAL command statement. This can be done later in the program.

LOCAL variables and arrays are not affected by the RELEASE command.

Examples

      PROCEDURE Main()
         LOCAL n, lVar

         n := iif( lVar, "A", 3 )
         n := 2
         n := "a"
         n := seconds() + 2
         n := int( seconds() + 2 )
         RETURN

Tests

      See tests/testwarn.prg for more examples

Compliance

Clipper

Platforms

All

Files

None

Seealso

FIELD, PRIVATE, PUBLIC, STATIC, MEMVAR

FIELD

Posted on by vivaclipper

FIELD

Declares a list of database field names.

Syntax

      FIELD <xField> [,<xFieldn...>  [in <cDatabase>]

Arguments

<xField> A valid field name

<xFieldn> Additional field name

<cDatabase> An valid alias name

Description

This command declares the names of fields <xField> (and <xFieldn> and following) with an optional alias identifier as <cDatabase> for each. This command allow Harbour to resolve any reference to a field specified in the field list by viewing it as a field when it is not referenced by an alias. If a field is not listed in this list and it is not explicity tagged with an alias indentifier, it may be viewed as a memory variable, which may cause run-time errors. This command has no effect on memory variables or on field reference buried within a macro expression.

Examples

      PROCEDURE Main()
         FIELD Id
         FIELD Name
         USE tests NEW
         Name := "Sales"
         Id := 5
         USE
         RETURN

Tests

      See tests/testwarn.prg

Compliance

Clipper

Platforms

All

Files

None.

Seealso

MEMVAR, PRIVATE, PUBLIC, STATIC

C5_STATIC

Posted on by vivaclipper
STATIC
 Declare and initialize static variables and arrays
------------------------------------------------------------------------------
 Syntax

     STATIC <identifier> [[:= <initializer>], ... ]

 Arguments

     <identifier> is the name of the variable or array to declare static.
     If the <identifier> is followed by square brackets ([ ]), it is created
     as an array.  If the <identifier> is an array, the syntax for specifying
     the number of elements for each dimension can be array[<nElements>,
     <nElements2>,...] or array[<nElements>] [<nElements2>]...  The maximum
     number of elements is 4096.  The maximum number of dimensions is limited
     only by available memory.

     <initializer> is the optional assignment of a value to a new static
     variable.  An <initializer> for a static variable consists of the inline
     assignment operator (:=) followed by a compile-time constant expression
     consisting entirely of constants and operators or a literal array.  If
     no explicit <initializer> is specified, the variable is given an initial
     value of NIL.  In the case of an array, each element is NIL.  Array
     identifiers cannot be given values with an <initializer>.

     Note:  The macro operator (&) cannot be used in a STATIC declaration
     statement.

 Description

     The STATIC statement declares variables and arrays that have a lifetime
     of the entire program but are only visible within the entity that
     creates them.  Static variables are visible only within a procedure or
     user-defined function if declared after a PROCEDURE or FUNCTION
     statement.  Static variables are visible to all procedures and functions
     in a program (.prg) file (i.e., have filewide scope) if they are
     declared before the first procedure or user-defined function definition
     in the file.  Use the /N compiler option to compile a program with
     filewide variable scoping.

     All static variables in a program are created when the program is first
     invoked, and all values specified in a static <initializer> are assigned
     to the variable before the beginning of program execution.

     Declarations of static variables within a procedure or user-defined
     function must occur before any executable statement including PRIVATE,
     PUBLIC, and PARAMETERS.  If a variable of the same name is declared
     FIELD, LOCAL, or MEMVAR within the body of a procedure or user-defined
     function, a compiler error occurs and no object (.OBJ) file is
     generated.

     The maximum number of static variables in a program is limited only by
     available memory.

 Notes

     .  Inspecting static variables within the Debugger: To access
        static variable names within the Clipper debugger, you must
        compile program (.prg) files using the /B option so that static
        variable information is included in the object (.OBJ) file.

     .  Macro expressions: You may not refer to static variables
        within macro expressions or variables.  If a static variable is
        referred to within a macro expression or variable, a private or
        public variable of the same name will be accessed instead.  If no
        such variable exists, a runtime error will be generated.

     .  Memory files: Static variables cannot be SAVED to or RESTOREd
        from memory (.mem) files.

     .  Type of a static local variable: Since TYPE() uses the macro
        operator (&) to evaluate its argument, you cannot use TYPE() to
        determine the type of a local or static variable or an expression
        containing a local or static variable reference.  The VALTYPE()
        function provides this facility by evaluating the function argument
        and returning the data type of its return value.

 Examples

     .  This example declares static variables both with and without
        initializers:

        STATIC aArray1[20, 10], aArray2[20][10]
        STATIC cVar, cVar2
        STATIC cString := "my string", var
        STATIC aArray := {1, 2, 3}

     .  This example manipulates a static variable within a user-
        defined function.  In this example, a count variable increments
        itself each time the function is called:

        FUNCTION MyCounter( nNewValue )
           STATIC nCounter := 0         // Initial value assigned once
           IF nNewValue != NIL
              nCounter:= nNewValue      // New value for nCounter
           ELSE
              nCounter++                // Increment nCounter
           ENDIF
           RETURN nCounter

     .  This example demonstrates a static variable declaration that
        has filewide scope.  In this code fragment, aArray is visible to both
        procedures that follow the declaration:

        STATIC aArray := {1, 2, 3, 4}

        FUNCTION One
           ? aArray[1]                  // Result: 1
           RETURN NIL

        FUNCTION Two
           ? aArray[3]                  // Result: 3
           RETURN NIL

See Also: FUNCTION LOCAL PARAMETERS PRIVATE PROCEDURE PUBLIC


















[ ]  Array element indicator




		Posted on  by vivaclipper












 [ ]
 Array element indicator                         (Special)
------------------------------------------------------------------------------
 Syntax

     <aArray>[<nSubscript>, ... ]
     <aArray>[<nSubscript1>][<nSubscript2>] ...

 Operands

     <aArray> is an expression that returns a reference to an array.
     This is generally a variable identifier or instance variable.

     <nSubscript> is a numeric expression that addresses an individual
     element in the specified array or subarray.  Each subscript corresponds
     to a dimension of the array.

 Description

     The subscript operator ([]) specifies a single array element.  The name
     of a previously declared array must precede the left bracket and the
     array element subscript must appear as a numeric expression within the
     brackets.  You can make array element references using Pascal or C-style
     syntax.

 Examples

     .  This example accesses each element in a two-dimensional array
        of known dimensions:

        LOCAL i, j
        FOR i := 1 TO 5
           FOR j := 1 TO 10
              ? aOne[i, j]
           NEXT
        NEXT

     .  These examples specify an <aArray> expression:

        LOCAL aArray := { 1, 2, 3, 4, 5 }
        //
        ? ArrayFunc()[2]                     // Result: 2
        ? { {1, 2}, {3, 4} }[1][2]           // Result: 2
        ? aArray[5]                          // Result: 5

        FUNCTION ArrayFunc
           STATIC aArray := { 1, 2 }
           RETURN aArray

     .  This example queries and assigns a static array encapsulated
        within a function definition:

        ? ArrayFunc()[1]                     // Result: 1
        ArrayFunc()[1] := 10
        ? ArrayFunc()[1]                     // Result: 10

        FUNCTION ArrayFunc
           STATIC aArray := { 1, 2 }
           RETURN aArray




See Also: ARRAY() LOCAL PRIVATE PUBLIC STATIC















Quick Start to Migration




		Posted on  by vivaclipper







Chapter I – Text to text conversion


In Clipper world, “migration” means “convert a DOS based Clipper program to Windows”. This is a dream of every Clipper – DOS programmer.


 Before all, we need clarify some terms:


May be found multiple ways for convert a DOS based Clipper program to Windows. In general, DOS programs are runs in “text” mode and Windows program runs in “Graphic” mode; and this is what meant by term “migration”.


Converting a text mode program to directly GUI (Graphical User Interface) is a painful job. First, we need to find a Compiler with GUI support, or a GUI library usable with a specific compiler. If we have more than one opportunity ( yes, it is so ) we need make a choice between them.


For make a right selection we need learn, understand specialties of each option and differences between them.


Believe me, this is an endless way 😦


Instead, let’s begin with simpler thing: convert a DOS text mode program to Windows text mode program.


Question: Without GUI, what meaning will be to migrate from DOS to Windows?


Answer: Good question and like all good question, answer isn’t easy.


First, modern OSs moves away day to day from DOS conditions; memory problems, screen problems, codepage problems, etc… By the time, building / running 16 bit executable becomes more difficult day to day.


Whereas Harbour already is a 32 / 64 bit compiler.


Second, all DOS Compilers for Clipper are commercial and registration required products; furthermore they are almost out of sold for this days; what compiler you could use?


And third, Harbour is best free compiler and the best way to use a free GUI tool for xBase language.


So, beginning with using Harbour in text mode is the best start point, I think.


First step is downloading and install HMG or Harbour. If you didn’t past this step yet please refer previous articles in this section or “Links” page of this blog.


The easiest way for using Harbour compiler is calling hbmk2, the wonderful project maker for Harbour compiler.


Depending your installation, hbmk2 may be in different locations; such as C:\Harbour\bin or c:\hmg\harbour\bin or anything else.


Hereafter I will assume that your hbmk2 is in C:\hmg\Harbour\bin. If your installation is different, please modify above examples.


Second step is assign an empty folder (directory) for work / test affairs; say C:\test.


And the third step is copying your Clipper program(s) to this folder.


But don’t rush; we have some precautions:


– Better way is starting with a single-program project; if you haven’t written a new one. Don’t uses for now projects have multiple program file.


 – Your program may have some “national” characters and these characters may be differently shown between DOS and Windows. If so, you may want fix manually these differences via a Windows based text editor. Or use a program if you have one. Harbour has a clever tool (HB_OEMTOANSI() function) is usable for this purpose.


 – In Clipper it’s possible a program file without module (procedure / function) definition. If you have such file(s), enclose your code with PROCEDURE — RETURN statement pair.


– Every Harbour project must have one and only one MAIN module (procedure / function). The first procedure / function in your single program file will be considered as MAIN module of your project. (In HMG, name of this module must be “main” also).


– Almost all Clipper commands, statement, functions, pseudo functions, manifest constants etc are usable almost in the same ways with Clipper. May be exist some very few and very rare differences, and of course solving methods for its.


For compile process we will use command box (DOS / console window) of Windows. You can open a console window, with the menu Start -> Run -> cmd or selecting it in the “Command Prompt” from the Start Menu \ All Programs.


 – “Command / console window” size may not appropriate for easy use. You may


      – use a MODE ( DOS ) command :


         MODE CON LINES=54 COLS=148


       or


   – adding a SetMode() statement at the beginning of MAIN module of your project. For example:


       SetMode( 25,  80 )  // 25 line 80 column same as standard
                           // DOS screen ( but not full screen ! )
       SetMode( 48, 128 )  // 48 line 128 column, may be more readable


Now, we are ready to begin: Enter this command in console window :


 C:\hmg\harbour\bin hbmk2 <mainPrgName>


You don’t need any SET command (such as PATH etc) before this command; hbmk2 will find all necessary paths / files.


For running executable after compile, add a -run switch to the command line :


 C:\hmg\harbour\bin hbmk2 <mainPrgName> -run


Of course, you need supply name of your main .prg file in place of <mainPrgName>.


Note that you don’t need a separate “linking” step; hbmk2 will do everything for you.


You may use this


 C:\hmg\harbour\bin hbmk2 <mainPrgName>


command via a batch ( .bat ) command file (such as “build.bat”) too. In this way you can apply compiling process without console window; run .bat file by double click in the Windows Explorer. In this case you may need add a PAUSE command at end of .bat file.


That’s all.


You know, a program file may contains more than one module (procedure / function). So you may develop your project by adding new modules to your single program file.


In this step you don’t need trying extra features, extensions of Harbour. Before that adventure your primary need is to convert existing project Clipper to Harbour.


When you reach a level of multiple-program file project:


– Basic rules are the same: the first module in the your program file is MAIN module of your project.


If your .prg files contains:


  SET PROCEDURE TO <procedure_File_Name>


 and / or


   #include <procedure_File_Name>


 you may or may not continue using these statement.


 – The shortest way for compiling a multiple-file project is use a .hbp ( Harbour Projet ) file. This is a text file and its simplest form is a file contains list of your .prg files. For example:


myprog01.prg


myprog02.prg


myprog03.prg


myprog04.prg


and the compile command is the same :


  C:\hmg\harbour\bin hbmk2 <mainProjectFileName>


In this case you don’t need to use SET PROC… and #include … statement and this is the better way.


Because hbmk2 applies “incremental” compiling, that is compiles only modified files.


Under normal circumstances, any module in any program file is callable in anywhere in the project. If you have some modules that exclusive to this program file, you may use STATIC keyword at the beginning of PROCEDURE / FUNCTION statement. For example:


STATIC FUNCTION OpenTable()


With this syntax you will prevent calling this module outside of this .prg file and the possibility of using this module name into other .prg files.


Example :


Take “A typical Harbour Program” in the “Harbour Sample” page.


As seen at .pdf file by given link, this sample program borrowed from official reference guide of a Clipper compiler. That is, in fact this is a Clipper program and it will may compile with Harbour and run without any modification.


Let’s try.


– Copy and paste this sample and save in your PC with a name say “typical.prg”.


– Comment out the line for now.


 #include "Database.prg" // Contains generic database functions


– Call hbmk2:


 C:\hmg\harbour\bin hbmk2 typical -run


 Note: While working / playing on programs, you may encounter some error messages like:


  Error F0029  Can't open #include file xxx


  Error E0002  Redefinition of procedure or function xxx


  Error: Referenced, missing, but unknown function(s): xxx


  undefined reference to HB_FUN_xxx


 Please don’t panic !


    “Error” is salt and pepper of programming play ! 😉


 The worst situation isn’t getting error, but is unable to stay !


   The “HB_FUN_xxx” may be seen weird at first meet. The “HB_FUN_” is a prefix given by system ( compiler ) to your function; so you need search erroneous point into tour program files without this prefix.


Now, let’s continue to our “typical” program:


If you compile the program with commented out #include … line, possibly it will work, by opening main menu:


Typical_1


But what’s that?


When selected a menu item (except “Quit”) we can’t see other than an empty screen!


Again, don’t panic!


This situation too is not very rare !


If you use vertical scroll bar of command / console window, you will notice that your screen is considerably much longer than seen !


To avoid this conflict, ( as stated above ) we need use a SetMode() function call at top of our Main() procedure ( but AFTER LOCAL statement ! ) :


  SetMode( 24, 79 )


 And now everything is OK.

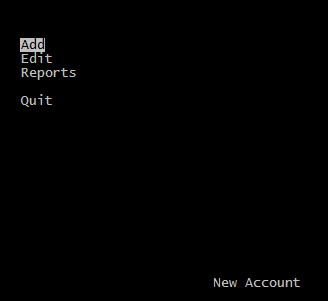

Typical_2


In fact, not really everything, we have a few “fine adjustment”.


Cut and paste the section after “// Database.prg” to a separate “Database.prg” file, un-comment the “#include …” line and then re-compile.


In this case we have a “multiple prg” project. As stated earlier, better way is using a .hbp file instead of “#include …” statements.


Now comment out ( or delete now ) the #include line.


Build a new text file with name “typical.hbp” and with this content :


Typical.prg


DataBase.prg


And recall hbmk2 without any modification :


C:\hmg\harbour\bin hbmk2 typical -run


That’s all !


Congratulations !


Now you have a multiple-prg project  !
