Tag Archives: checkbox

Data entry boxes

Posted on by vivaclipper

HMG Tutor 21 — Data-Controls II:

TEXTBOX, DATEPICKER, CHECKBOX, EDITBOX

The ‘data-version’ of these controls required the use of the following properties / methods to bound them to a database field:

Field Property: Stablishes the field that control is bounded to.
Refresh Method: Updates control content based on current field content.
Save method: Updates database file according control content.

#include "hmg.ch"

Function Main
DEFINE WINDOW Win_1 ;
   AT 0,0 ;
   WIDTH 640 ;
   HEIGHT 480 ;
   TITLE 'Tutor 21: Data-Bound Controls Test' ;
   MAIN ;
   ON INIT OpenTables() ;
   ON RELEASE CloseTables()

   DEFINE TOOLBAR ToolBar_1 BUTTONSIZE 100,30 FLAT RIGHTTEXT BORDER

      BUTTON TOP ;
         CAPTION '&Top' ;
         PICTURE 'primero.bmp' ;
         ACTION ( DbGoTop() , Refresh() )

      BUTTON PREVIOUS ;
         CAPTION '&Previous';
         PICTURE 'anterior.bmp' ;
         ACTION ( DbSkip(-1) , Refresh() )

      BUTTON NEXT ;
         CAPTION '&Next';
         PICTURE 'siguiente.bmp' ;
         ACTION ( DbSkip(1) , if ( eof() , DbGoBottom() , Nil ) , Refresh() )

      BUTTON BOTTOM ;
         CAPTION '&Bottom' ;
         PICTURE 'ultimo.bmp' ;
         ACTION ( DbGoBottom() , Refresh() )

      BUTTON SAVE ;
         CAPTION '&Save' ;
         PICTURE 'guardar.bmp' ;
         ACTION ( Save() , Refresh() )

      BUTTON UNDO ;
         CAPTION '&Undo' ;
         PICTURE 'deshacer.bmp' ;
         ACTION ( Refresh() )

   END TOOLBAR

   @  50,10 LABEL LABEL_1 VALUE 'Code:'
   @  80,10 LABEL LABEL_2 VALUE 'First Name'
   @ 110,10 LABEL LABEL_3 VALUE 'Last Name'
   @ 140,10 LABEL LABEL_4 VALUE 'Birth Date:'
   @ 170,10 LABEL LABEL_5 VALUE 'Married:'
   @ 200,10 LABEL LABEL_6 VALUE 'Bio:'

   @ 50,200 TEXTBOX TEXT_1;
            FIELD TEST->CODE ;
            NUMERIC ;
            MAXLENGTH 10

   @ 80,200 TEXTBOX TEXT_2;
            FIELD TEST->FIRST ;
            MAXLENGTH 30

   @ 110,200 TEXTBOX TEXT_3;
             FIELD TEST->LAST ;
             MAXLENGTH 30

   @ 140,200 DATEPICKER DATE_4 ;
             FIELD Test->Birth

   @ 170,200 CHECKBOX CHECK_5 ;
             CAPTION '' ;
             FIELD Test->Married

   @ 200,200 EDITBOX EDIT_6 ;
             FIELD Test->Bio ;
             HEIGHT 100

END WINDOW

Win_1.Text_1.SetFocus

ACTIVATE WINDOW Win_1

Return Nil

Procedure Refresh
   Win_1.Text_1.Refresh
   Win_1.Text_2.Refresh
   Win_1.Text_3.Refresh
   Win_1.Date_4.Refresh
   Win_1.Check_5.Refresh
   Win_1.Edit_6.Refresh
   Win_1.Text_1.SetFocus
Return

Procedure Save
   Win_1.Text_1.Save
   Win_1.Text_2.Save
   Win_1.Text_3.Save
   Win_1.Date_4.Save
   Win_1.Check_5.Save
   Win_1.Edit_6.Save
Return

Procedure OpenTables
   USE TEST
Return
Procedure CloseTables
   USE
Return

Getting Logical

Posted on by vivaclipper

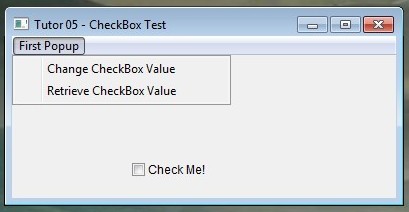

HMG Tutor 5

Getting Logical

Sometimes, you need to get logical data. from the user. The easiest way to do that, is using a checkbox control.

@ 180, 120 CHECKBOX Check_1

We add it to the program, along with new menu options to set or retrieve its value.

#include "hmg.ch"
Function Main
DEFINE WINDOW Win_1 ;
   AT 0,0 ;
   WIDTH 400 ;
   HEIGHT 300 ;
   TITLE 'Tutor 05 - CheckBox Test' ;
   MAIN
   DEFINE MAIN MENU
      POPUP "First Popup"
        ITEM 'Change CheckBox Value' ACTION ;
              Win_1.Check_1.Value := .T.
        ITEM 'Retrieve CheckBox Value' ACTION ;
              MsgInfo ( if(Win_1.Check_1.Value,'.T.','.F.'))
      END POPUP
   END MENU
   @ 100, 120 CHECKBOX Check_1 CAPTION 'Check Me!'
END WINDOW
ACTIVATE WINDOW Win_1
Return
