Re: Project Free HRD & Payroll Application

Post by danielmaximiliano »

Gracias Agil por compartir estos buenos ejemplos...

Agil Thanks for sharing these good examples ...
*´¨)
¸.·´¸.·*´¨) ¸.·*¨)
(¸.·´. (¸.·` *
.·`. Harbour/HMG : It's magic !
(¸.·``··*

Saludos / Regards
DaNiElMaXiMiLiAnO

Whatsapp. := +54901169026142
Telegram Name := DaNiElMaXiMiLiAnO
User avatar
Agil Abdullah
Posts: 204
Joined: Mon Aug 25, 2014 11:57 am
Location: Jakarta, Indonesia
Contact:

Re: Project Free HRD & Payroll Application

Post by Agil Abdullah »

Daniel,

Thanks for your appreciation.

Salam Hangat dari Jakarta
Agil Abdullah Albatati (just call me Agil)
Programmer Never Surrender
User avatar
Agil Abdullah
Posts: 204
Joined: Mon Aug 25, 2014 11:57 am
Location: Jakarta, Indonesia
Contact:

Re: Project Free HRD & Payroll Application

Post by Agil Abdullah »

Hi All,

Let me share new development and exercises. Pls note that I decided to MOVE BACKWARD (restart from beginning), in
order to get them better designed. So, managing 3 Master Tables (Company, Unit, Department) must be completed in full control and well designed. Then move to redesign master tables Manpower (Basic, Background, Biodata).

Pls also note this schedule:

..... OCTOBER 2014 - Completion of Master Tables
..... NOVEMBER 2014 - Completion of Payroll Transaction
..... DESEMBER 2014 - Completion of features and options
..... JANUARY 2015 - Ready to fully install & implement
...... FEb 2015..... - Improvement every month to reach maximum quality with HMG
(with bonuses include: Bostaurus, Richedit, ActiveX, important SAMPLES, excellent friend's shares)

Every advice, suggestion, help, comment, (and whatever) is highly appreciated with close attention. I will share newly full-attachment of source-progs when this Master Tables routines are completed and tested; to avoid improper attachment you do not want to see.

Regarding split box as shown before this with 3 Tables in one full window and no space remaining. You may find question; how to do dataentry/display in window, not within grid cell just like MS-Excel? Below screenshoot is the answer. Along with sample codes. Hopefuly, useful for beginners and students (especially in my country Indonesia).

Regards,,,,
Attachments
Agil Abdullah Albatati (just call me Agil)
Programmer Never Surrender
User avatar
Agil Abdullah
Posts: 204
Joined: Mon Aug 25, 2014 11:57 am
Location: Jakarta, Indonesia
Contact:

Re: Project Free HRD & Payroll Application

Post by Agil Abdullah »

Code: Select all

***mancomped.fmg*** (sample pieces) Window Template generated with IDE
*
* HMG-IDE UNICODE Form Designer Generated Code
* (c) Roberto Lopez - http://sites.google.com/site/hmgweb

DEFINE WINDOW TEMPLATE AT 143 , 386 WIDTH 438 HEIGHT 453 VIRTUAL WIDTH Nil VIRTUAL HEIGHT Nil TITLE "Company Record" ICON NIL CHILD

NOMAXIMIZE NOMINIMIZE NOSYSMENU CURSOR NIL ON INIT Nil ON RELEASE Nil ON INTERACTIVECLOSE Nil ON MOUSECLICK Nil ON MOUSEDRAG Nil ON

MOUSEMOVE Nil ON SIZE Nil ON MAXIMIZE Nil ON MINIMIZE Nil ON PAINT Nil BACKCOLOR {142,238,150} NOTIFYICON NIL NOTIFYTOOLTIP NIL ON

NOTIFYCLICK Nil ON GOTFOCUS Nil ON LOSTFOCUS Nil ON SCROLLUP Nil ON SCROLLDOWN Nil ON SCROLLLEFT Nil ON SCROLLRIGHT Nil ON HSCROLLBOX

Nil ON VSCROLLBOX Nil

    DEFINE LABEL Lab_Compcode
        ROW    20
        COL    20
        WIDTH  120
        HEIGHT 24
        VALUE "Company#"
        FONTNAME "Arial"
        FONTSIZE 9
        TOOLTIP ""
        FONTBOLD .T.
        FONTITALIC .T.
        FONTUNDERLINE .F.
        FONTSTRIKEOUT .F.
        HELPID Nil
        VISIBLE .T.
        TRANSPARENT .F.
        ACTION Nil
        AUTOSIZE .F.
        BACKCOLOR {142,238,150}
        FONTCOLOR NIL
        RIGHTALIGN .T.
    END LABEL

    DEFINE TEXTBOX Text_Compcode
        ROW    20
        COL    160
        WIDTH  30
        HEIGHT 24
        FONTNAME "Arial"
        FONTSIZE 9
        TOOLTIP ""
        ONCHANGE Nil
        ONGOTFOCUS Nil
        ONLOSTFOCUS Nil
        FONTBOLD .F.
        FONTITALIC .F.
        FONTUNDERLINE .F.
        FONTSTRIKEOUT .F.
        ONENTER Nil
        HELPID Nil
        TABSTOP .T.
        VISIBLE .T.
        READONLY .F.
        RIGHTALIGN .F.
        DISABLEDBACKCOLOR Nil
        DISABLEDFONTCOLOR Nil
        CASECONVERT UPPER
        MAXLENGTH 2
        BACKCOLOR NIL
        FONTCOLOR NIL
        INPUTMASK Nil
        FORMAT "'!!'"
        VALUE ""
    END TEXTBOX

//--- the rest (in the middle) are repetations of above definition with different control-name,
//--- with ROW pos different at 30 line each

    DEFINE RADIOGROUP Radio_Company
        ROW    370
        COL    60
        WIDTH  250
        HEIGHT 28
        OPTIONS { 'Accept','Cancel'}
        VALUE 1
        FONTNAME "Arial"
        FONTSIZE 18
        TOOLTIP ""
        ONCHANGE Nil
        FONTBOLD .T.
        FONTITALIC .F.
        FONTUNDERLINE .F.
        FONTSTRIKEOUT .F.
        HELPID Nil
        TABSTOP .T.
        VISIBLE .T.
        TRANSPARENT .F.
        SPACING 125
        BACKCOLOR {0,128,64}
        FONTCOLOR {0,0,255}
        READONLY Nil
        HORIZONTAL .T.
    END RADIOGROUP

    DEFINE BUTTON Button_Go
        ROW    365
        COL    320
        WIDTH  70
        HEIGHT 40
        ACTION  ( MancompGetentry(.T.), MancompGetoption(.T.), MancompValidateentry() )
        CAPTION "GO"
        FONTNAME "Arial"
        FONTSIZE 18
        TOOLTIP "Go To Process"
        FONTBOLD .T.
        FONTITALIC .F.
        FONTUNDERLINE .F.
        FONTSTRIKEOUT .F.
        ONGOTFOCUS Nil
        ONLOSTFOCUS Nil
        HELPID Nil
        FLAT .F.
        TABSTOP .T.
        VISIBLE .T.
        TRANSPARENT .T.
        MULTILINE .F.
        PICTURE Nil
        PICTALIGNMENT TOP
    END BUTTON

END WINDOW

//----------------------------------------------------------------------------

**manmastbl.prg (sample pieces)

***************************
* Activate/Deactivate Form Company Data entry
* Flag .T. activate/show, .F. to Hide
***************************
Function ManActivateCompEntry(Flag)
    IF Flag==.T.
        if .not. isWindowdefined(Form_MancompEntry)
	     LOAD WINDOW Mancomped AS Form_MancompEntry
	endif
    else
        if  isWindowdefined(Form_MancompEntry)
            //-optional method: release, hide, disabled=.T.
	    Form_MancompEntry.hide
	endif
    endif
Return
*
*
********************************
* COMP: Edit company's existing record
* Grid value (row post) return in array (row, col) because option CELLNAVIGATION is used
********************************
Procedure ManEditCompany()
    LOCAL cKey, aInitvalues, aResults, nRecord

    //---Send&Set mode of operation to Update=2
	 MancompEntrymode( .T. , 2)

    //---get record from grid
	 nRecord  := Form_Master.Grid_Company.value[1]
	 aResults := aInitValues:= Form_Master.Grid_Company.item(nRecord)

    //---Activate template, Send record to template, get user entry, do validation from template
    //---Protect key-field Compcode from editing
	 ManActivateCompEntry(.T.)
         MancompSetentry (aResults)
	 Form_MancompEntry.Text_compcode.Readonly:=.T.
         Form_MancompEntry.Text_compname.Setfocus
	 Form_MancompEntry.Activate

	//--if ACCEPT then check entry option & Validation of entry
	IF MancompGetoption() == 1 .and. MancompValidateentry(.T.)==.T.                          //Option ACCEPT & Valid entry
  	   aResults := MancompGetentry(.F.)
        ELSE
	    RETURN .F.
	ENDIF

	If .not.Msgyesno("Update record?")        //to test only
	    return .F.
	endif

	//--Edit records to Database, Sent modified records to Database
        //--Make sure field length of key-field is exactly equal to field length in Database
        cKey:= padr( aResults[COMP_KEY_COL]), COMP_KEY_COL )
        IF ManCompUpdate(aResults, cKey)
	   //--go ahead
	else
	    Msgstop('Error: Upadate record to Company Database')
 	    Return .F.
	endif

        //--Edit modify Array of records in grid
	Form_Master.Grid_Company.Item(nRecord) := aResults
        Form_Master.Grid_Company.Setfocus
Return
*
********************************
* COMP: Validate data entry
* lGetValid : .T. to get value of lValid, else to do validation
* lValid    : .T. oke, .F. wrong
* nEntryMode: 1=Add/Update, 2=Update
********************************
Function MancompValidateentry(lGetValid)
    STATIC lValid   := .F.
    Local aResults  := MancompGetentry(.F.)
    Local nEntryMode:= MancompEntrymode(.F.)

	IF .not.lGetValid == NIL .and. lGetValid==.T.	                                      //Get last validation value
            Return lValid
	ENDIF

	lValid := .F.

	IF MancompGetoption() == 2                                                            //CANCEL
            Form_MancompEntry.release
	    Form_Master.Grid_Company.Setfocus
            Return ( lValid := .F. )

	ElseIF MancompGetoption() == 1                                                            //ACCEPT entry

	    //--NOT Valid for Append & Update
	    if empty( aResults[COMP_KEY_COL]) .or. empty( aResults[2])
                MsgExclamation('Invalid empty entry on Code or Name')
                Form_MancompEntry.Text_compcode.Setfocus

	    elseif  aResults[COMP_KEY_COL] = "**" .or. left(aResults[2], 1) = "*"
                MsgExclamation('Invalid entry ** on Code or Name')
                Form_MancompEntry.Text_compcode.Setfocus


           //--NOT Valid for Append only
	    elseIF nEntryMode==1 .and. ManFindCompGrid( aResults[COMP_KEY_COL] ) >= 1
                MsgExclamation(aResults[UNIT_KEY_COL] + ' already exists in grid.')
                Form_MancompEntry.Text_compcode.Setfocus

	    else
	        lValid := .T.
		Form_MancompEntry.release
		Form_Master.Grid_Company.Setfocus

	    Endif
        endif
Return lValid
*
*
************************
* Find existing record of Company in Grid
************************
Function ManFindCompGrid( cKey )
    Static nRow := 0
    Local nRecNo := 1, i:=0

	FOR i=1 TO Form_Master.Grid_Company.ItemCount
	    if HMG_UPPER( Form_Master.Grid_Company.CellEx(i, COMP_KEY_COL) ) == cKey
               nRecno := nRow := i
                              //--test	Msginfo("found at grid rec#" +str(i))
		EXIT
	    endif
	NEXT

    IF nRecNo>0
        Form_Master.Grid_Company.value :=nRecNo                        //found, move pointer of grid
    else
	Form_Master.Grid_Company.value :=nRow                          //pointer to last record-search found
    endif

Return nRecNo
*
***********************************
* COMP: Set/Fill in form for data entry
***********************************
Function MancompSetentry(aValues)
        Form_MancompEntry.Text_compcode.value  := aValues[1]
	Form_MancompEntry.Text_compname.value  := aValues[2]
	Form_MancompEntry.Text_compctx.value   := aValues[3]
	Form_MancompEntry.Text_compaddr.value  := aValues[4]
	Form_MancompEntry.Text_compaddr2.value := aValues[5]
	Form_MancompEntry.Text_compcity.value  := aValues[6]
	Form_MancompEntry.Text_compzip.value   := aValues[7]
	Form_MancompEntry.Text_comptelp.value  := aValues[8]
	Form_MancompEntry.Text_compfax.value   := aValues[9]
	Form_MancompEntry.Text_compemail.value := aValues[10]
	Form_MancompEntry.Text_compweb.value   := aValues[11]
Return
*
***********************************
* COMP: Get/Fill in form for data entry
***********************************
Function MancompGetentry(lNew)
    STATIC aValues[11]

	if lNew
                aValues[1]:= Form_MancompEntry.Text_compcode.value
		aValues[2]:= Form_MancompEntry.Text_compname.value
		aValues[3]:= Form_MancompEntry.Text_compctx.value
		aValues[4]:= Form_MancompEntry.Text_compaddr.value
		aValues[5]:= Form_MancompEntry.Text_compaddr2.value
		aValues[6]:= Form_MancompEntry.Text_compcity.value
		aValues[7]:= Form_MancompEntry.Text_compzip.value
		aValues[8]:= Form_MancompEntry.Text_comptelp.value
		aValues[9]:= Form_MancompEntry.Text_compfax.value
		aValues[10]:= Form_MancompEntry.Text_compemail.value
		aValues[11]:= Form_MancompEntry.Text_compweb.value
	endif
Return aValues
*
***********************************
* COMP: Get/Set Option dataentry: Accept=1, Cancel=2
***********************************
Function MancompGetoption(lSetNew)
    STATIC nOption:=0

	lSetnew := if(lSetnew==NIL, .F., lSetNew)
	if lSetNew
	    nOption:=Form_MancompEntry.Radio_Company.value
	else
	    nOption := if( .not.Valtype(nOption)="N", 0, nOption)
	endif
Return nOption
*
***********************************
* COMP: Get/Set Mode of dataentry: 0=No action, 1=Add/append, 2=Update, 3=Delete, 4=Copy-to-append
***********************************
Function MancompEntrymode(lSetNew, nModeValue)
    STATIC nMode:=0

	lSetnew := if(lSetnew==NIL, .F., lSetNew)
	if lSetNew
	    nMode:= nModeValue
	endif
Return nMode
*


Agil Abdullah Albatati (just call me Agil)
Programmer Never Surrender
User avatar
bpd2000
Posts: 1207
Joined: Sat Sep 10, 2011 4:07 am
Location: India

Re: Project Free HRD & Payroll Application

Post by bpd2000 »

Suggestion: keep 10 field as user defined so user can define, store data and use same filed for reporting
Download payroll program that will give you more idea
http://www.busywin.com/busydata/PAY%201 ... /SETUP.EXE
BPD
Convert Dream into Reality through HMG
User avatar
Agil Abdullah
Posts: 204
Joined: Mon Aug 25, 2014 11:57 am
Location: Jakarta, Indonesia
Contact:

Re: Project Free HRD & Payroll Application

Post by Agil Abdullah »

Bpd2000 wrote;

Suggestion: keep 10 field as user defined so user can define, store data and use same filed for reporting
Download payroll program that will give you more idea
http://www.busywin.com/busydata/PAY%201.0%20(k-4" onclick="window.open(this.href);return false;)/SETUP.EXE
Man thanks for kind suggestion. But, I failed to download your link. I stoped downloading before it finished.
Agil Abdullah Albatati (just call me Agil)
Programmer Never Surrender
User avatar
Agil Abdullah
Posts: 204
Joined: Mon Aug 25, 2014 11:57 am
Location: Jakarta, Indonesia
Contact:

Re: Project Free HRD & Payroll Application

Post by Agil Abdullah »

For Roberto Lopez,,,

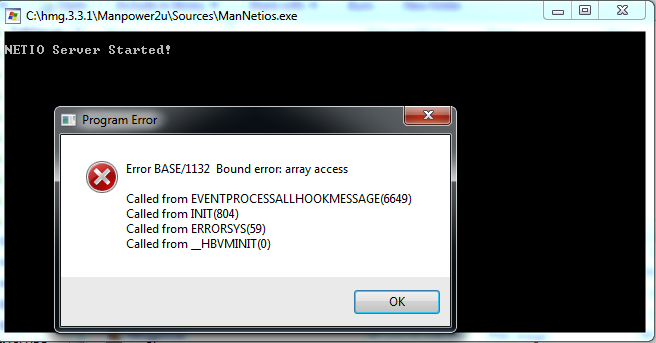

I tried to execute your above sample codes for connecting Server NETIO. But, error found like this screenshoot. May be, codes I modified made some mistakes. Pls kindly help.

Regards.

Code: Select all


#include "hmg.ch"                                                          //added by Agil
REQUEST HB_GT_WIN_DEFAULT                                        //added by Agil

**************
Procedure Main                                                              //added by Agil
   ServerMain()                                                              //added by Agil
Return                                                                         //added by Agil
*
******************
* On side of Server Application (console, multi-threaded in this sample):
******************
Procedure Servermain()                                                   // changedd by Agil..... Procedure main()

   local pSockSrv , nPort , cIfAddr, cRootDir, lRPC, cPasswd, nCompressionLevel, nStrategy

   SetMode(25,80)                                                          // added by Agil
   cls

   nPort        := 65000 // or anyone you like
   cIfAddr      := '0.0.0.0'
   cRootDir     := '.'
   lRPC         := .T.
   cPasswd      := 'secret'
   nCompressionLevel   := 9
   nStrategy      := NIL

   pSockSrv := NETIO_MTSERVER( nPort , cIfAddr , cRootDir , lRPC , cPasswd , nCompressionLevel , nStrategy )
   if empty( pSockSrv )
      ? "Can't startl server !!!"
      wait "Press any key to exit..."
      quit
   endif

   ? 'NETIO Server Started!'
   hb_idleSleep( 0.1 )

   DO WHILE .T.

      INKEY(0)

      IF LASTKEY() == 27 // Esc
         ? 'Stopping... ESC to stop'
         netio_serverstop( pSockSrv, .t. )
         EXIT
      ELSE
         LOOP
      ENDIF

   ENDDO

   CLS

   ALERT('SERVER STOPPED!')

return
**
Attachments
Agil Abdullah Albatati (just call me Agil)
Programmer Never Surrender
User avatar
serge_girard
Posts: 3161
Joined: Sun Nov 25, 2012 2:44 pm
DBs Used: 1 MySQL - MariaDB
2 DBF
Location: Belgium
Contact:

Re: Project Free HRD & Payroll Application

Post by serge_girard »

Agil ,

Try with port 2941.

Serge
There's nothing you can do that can't be done...
User avatar
Agil Abdullah
Posts: 204
Joined: Mon Aug 25, 2014 11:57 am
Location: Jakarta, Indonesia
Contact:

Re: Project Free HRD & Payroll Application

Post by Agil Abdullah »

Serge,

Set to port 2941, error remained the same.

FYI, I found it (a test) working when using codes of Extended Harbour from folder
Minigui\ SAMPLES\NETIO\NETIO-2. While SAMPLES\Misc\NETIO from HMG331 not working.

Thanks
Agil Abdullah Albatati (just call me Agil)
Programmer Never Surrender
User avatar
serge_girard
Posts: 3161
Joined: Sun Nov 25, 2012 2:44 pm
DBs Used: 1 MySQL - MariaDB
2 DBF
Location: Belgium
Contact:

Re: Project Free HRD & Payroll Application

Post by serge_girard »

Agil,


With me it is working fine since a week.
Maybe it is you firewall?

S
There's nothing you can do that can't be done...
Post Reply
