Draw border

Post by **esgici** » Wed Sep 25, 2013 11:05 am

Hi All

Almost every control has their own border, except a few ones, like Label and image.

This is an humble work to search an easy way to draw a border around controls.

To your interest, critics and suggestions.

: Screen shoot of Test Draw Border prg; Screen shoot of test DrawBorder.png (153.72 KiB) Viewed 8649 times

TestBorder.zip: Source files for Test Draw Border prg; (66.13 KiB) Downloaded 574 times

By the way, I have a problem; please look at TestBorder.prg line 54-55;

will be appreciated your advice.

Happy HMG'ing

Post by **bpd2000** » Wed Sep 25, 2013 11:28 am

Nice
Thank you Esgici
Regards

Post by **bpd2000** » Wed Sep 25, 2013 11:47 am

Dear Esgici,
Interesting to me
Where to find more about HB_Default()

Post by **serge_girard** » Wed Sep 25, 2013 12:44 pm

Esgici,

Try msgbox with str(aColor [1]) + ' ' + str(aColor [2]) + ' ' + str(aColor [3]).

This should help !

Serge

mol · Post by **mol** » Wed Sep 25, 2013 1:00 pm

Hi Esgici!
Your borders look amazing!
Tahks for sharing!
By the way, it's a pity we have no possibility to vertical align of value of label

It was possible in HMG4.

Maybe Rathi or Claudio can do such an improvement...

Regards, Marek

Post by **esgici** » Wed Sep 25, 2013 1:31 pm

Hi Dave

bpd2000 wrote: Where to find more about HB_Default()

Thank to your interest and nice words

Sadly not found (at least I don't know) any documentation about HB_Default()

Based on my experience :

Code: Select all

#include <hmg.ch>

PROCEDURE Main()
   TestDefa()
RETURN // Main()

*-._.-._.-._.-._.-._.-._.-._.-._.-._.-._.-._.-._.-._.-._.-._.-._.

PROCEDURE TestDefa( xParam )

   MsgDebug( "Before", xParam )       // NIL
   HB_Default( @xParam, 123 )         // IF NIL, assign 123
   MsgDebug( "After", xParam )        // 123

RETURN // TestDefa()

*-._.-._.-._.-._.-._.-._.-._.-._.-._.-._.-._.-._.-._.-._.-._.-._.

Happy HMG'ing

Post by **esgici** » Wed Sep 25, 2013 1:32 pm

Hi Marek

Thank to your interest and nice words

Happy HMG'ing

Post by **esgici** » Wed Sep 25, 2013 1:42 pm

Hi Serge

serge_girard wrote: Try msgbox with str(aColor [1]) + ' ' + str(aColor [2]) + ' ' + str(aColor [3]).

This should help !

Thank to your interest and suggestion

I'm afraid that I couldn't tell

Problem isn't about Message function ( MsgDebug() is very good enhancement, thank to Dr. Soto ).

Problem is in border of image.

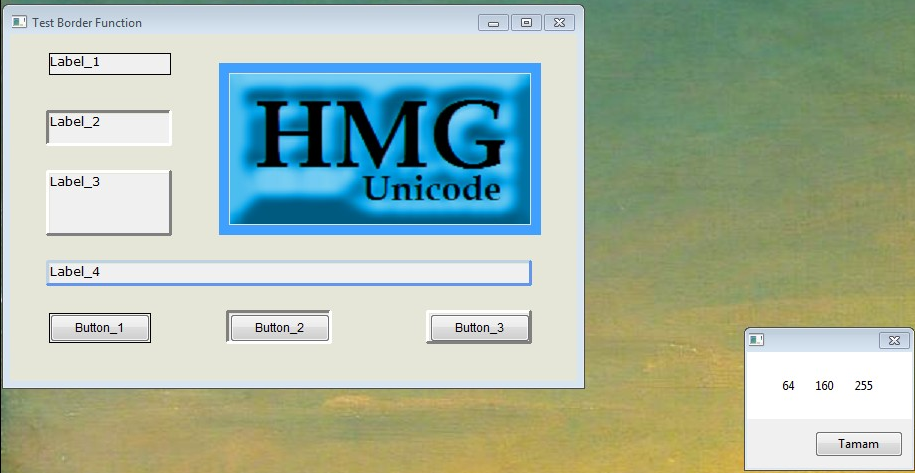

Please look at below image: while MsgDebug() is in screen, border seen fine,

: Image border if message in it place; before.png (307.87 KiB) Viewed 8599 times

when Msg gone ( or replaced ) the border changes

: Image border after message replaced; after.png (457.74 KiB) Viewed 8599 times

PS: don't look border of Label_4; this image is a bit older.

Happy HMG'ing

Pablo César · Post by **Pablo César** » Wed Sep 25, 2013 2:20 pm

Nice work Esgici, I liked !

As you said, the main problem is not based on Msg functions at all (it's my tip too). Even if you do not use msg function and minimize the main window, you will see border will be also changed. I believe it an tipic behaviour of API of OS and probably there is not solution for this...

But I find a way to put borders around IMAGEs:

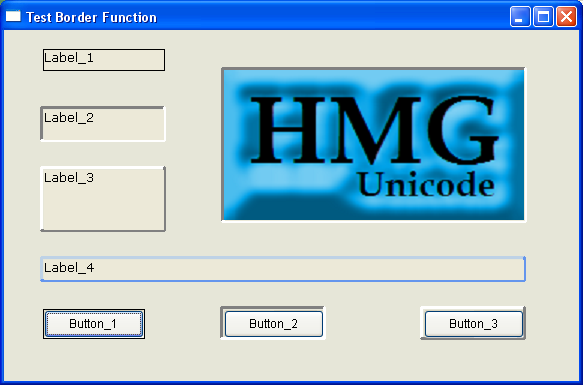

: Screen.PNG (77.9 KiB) Viewed 8589 times

I put an extra label with same size and position of IMAGE. This could it be not the best practice but could helps until get better solution.

Code: Select all

#include <hmg.ch>
#include "DrawBorder.ch"

Function Main()
* aMyColors := InitColors()

DEFINE WINDOW frmTestBorder AT 100 , 100 WIDTH 583 HEIGHT 385 ;
    TITLE "Test Border Function" ICON NIL MAIN ON INIT Draw_All() ;
    BACKCOLOR {230,230,216}

    ON KEY ESCAPE OF frmTestBorder ACTION ThisWindow.Release

    DEFINE LABEL Label_1
        ROW    20
        COL    40
        WIDTH  120
        HEIGHT 20
        VALUE "Label_1"
        FONTNAME "Verdana"
        FONTSIZE 9
        TOOLTIP ""
        FONTBOLD .F.
        FONTITALIC .F.
        FONTUNDERLINE .F.
        FONTSTRIKEOUT .F.
        HELPID Nil
        VISIBLE .T.
        TRANSPARENT .F.
        ACTION Nil
        AUTOSIZE .F.
        BACKCOLOR NIL
        FONTCOLOR NIL
    END LABEL

    DEFINE LABEL Label_2
        ROW    80
        COL    40
        WIDTH  120
        HEIGHT 30
        VALUE "Label_2"
        FONTNAME "Verdana"
        FONTSIZE 9
        TOOLTIP ""
        FONTBOLD .F.
        FONTITALIC .F.
        FONTUNDERLINE .F.
        FONTSTRIKEOUT .F.
        HELPID Nil
        VISIBLE .T.
        TRANSPARENT .F.
        ACTION Nil
        AUTOSIZE .F.
        BACKCOLOR NIL
        FONTCOLOR NIL
    END LABEL

    DEFINE LABEL Label_3
        ROW    140
        COL    40
        WIDTH  120
        HEIGHT 60
        VALUE "Label_3"
        FONTNAME "Verdana"
        FONTSIZE 9
        TOOLTIP ""
        FONTBOLD .F.
        FONTITALIC .F.
        FONTUNDERLINE .F.
        FONTSTRIKEOUT .F.
        HELPID Nil
        VISIBLE .T.
        TRANSPARENT .F.
        ACTION Nil
        AUTOSIZE .F.
        BACKCOLOR NIL
        FONTCOLOR NIL
    END LABEL

    DEFINE BUTTON Button_1
        ROW    280
        COL    40
        WIDTH  100
        HEIGHT 28
        ACTION Nil
        CAPTION "Button_1"
        FONTNAME "Arial"
        FONTSIZE 9
        TOOLTIP ""
        FONTBOLD .F.
        FONTITALIC .F.
        FONTUNDERLINE .F.
        FONTSTRIKEOUT .F.
        ONGOTFOCUS Nil
        ONLOSTFOCUS Nil
        HELPID Nil
        FLAT .F.
        TABSTOP .T.
        VISIBLE .T.
        TRANSPARENT .F.
        MULTILINE .F.
        PICTURE Nil
        PICTALIGNMENT TOP
    END BUTTON

    DEFINE BUTTON Button_2
        ROW    280
        COL    220
        WIDTH  100
        HEIGHT 28
        ACTION Nil
        CAPTION "Button_2"
        FONTNAME "Arial"
        FONTSIZE 9
        TOOLTIP ""
        FONTBOLD .F.
        FONTITALIC .F.
        FONTUNDERLINE .F.
        FONTSTRIKEOUT .F.
        ONGOTFOCUS Nil
        ONLOSTFOCUS Nil
        HELPID Nil
        FLAT .F.
        TABSTOP .T.
        VISIBLE .T.
        TRANSPARENT .F.
        MULTILINE .F.
        PICTURE Nil
        PICTALIGNMENT TOP
    END BUTTON

    DEFINE BUTTON Button_3
        ROW    280
        COL    420
        WIDTH  100
        HEIGHT 28
        ACTION DrawWideBorder( "frmTestBorder", "Image_1", { 164, 260, 155 } )
        CAPTION "Button_3"
        FONTNAME "Arial"
        FONTSIZE 9
        TOOLTIP ""
        FONTBOLD .F.
        FONTITALIC .F.
        FONTUNDERLINE .F.
        FONTSTRIKEOUT .F.
        ONGOTFOCUS Nil
        ONLOSTFOCUS Nil
        HELPID Nil
        FLAT .F.
        TABSTOP .T.
        VISIBLE .T.
        TRANSPARENT .F.
        MULTILINE .F.
        PICTURE Nil
        PICTALIGNMENT TOP
    END BUTTON

    DEFINE LABEL Label_4
        ROW    230
        COL    40
        WIDTH  480
        HEIGHT 20
        VALUE "Label_4"
        FONTNAME "Verdana"
        FONTSIZE 9
        TOOLTIP ""
        FONTBOLD .F.
        FONTITALIC .F.
        FONTUNDERLINE .F.
        FONTSTRIKEOUT .F.
        HELPID Nil
        VISIBLE .T.
        TRANSPARENT .F.
        ACTION Nil
        AUTOSIZE .F.
        BACKCOLOR NIL
        FONTCOLOR NIL
    END LABEL

	DEFINE LABEL Label_5
        ROW    41
        COL    221
        WIDTH  300
        HEIGHT 150
        VALUE ""
        FONTNAME "Verdana"
        FONTSIZE 9
        TOOLTIP ""
        FONTBOLD .F.
        FONTITALIC .F.
        FONTUNDERLINE .F.
        FONTSTRIKEOUT .F.
        HELPID Nil
        VISIBLE .T.
        TRANSPARENT .F.
        ACTION Nil
        AUTOSIZE .F.
        BACKCOLOR NIL
        FONTCOLOR NIL
    END LABEL

    DEFINE IMAGE Image_1
        ROW    40
        COL    220
        WIDTH  300
        HEIGHT 150
        PICTURE "HMG_Unicode.PNG"
        HELPID Nil
        VISIBLE .T.
        STRETCH .F.
        ACTION Nil
    END IMAGE

END WINDOW
*   frmTestBorder.Center
frmTestBorder.Activate
Return Nil

Function Draw_All()
DRAW BORDER WINDOW "frmTestBorder" CONTROL "Label_1"
DRAW BORDER WINDOW "frmTestBorder" CONTROL "Label_2" PENWIDTH 3 UPCOLOR 1 DOWNCOLOR 0
DRAW BORDER WINDOW "frmTestBorder" CONTROL "Label_3" PENWIDTH 3 UPCOLOR 0 DOWNCOLOR 1
DRAW BORDER WINDOW "frmTestBorder" CONTROL "Label_4" PENWIDTH 3 UPCOLOR { 190, 210, 230 } DOWNCOLOR { 100, 149, 237 }

DRAW BORDER WINDOW "frmTestBorder" CONTROL "Label_5" PENWIDTH 3 UPCOLOR 1 DOWNCOLOR 0

DRAW BORDER WINDOW "frmTestBorder" CONTROL "Button_1"
DRAW BORDER WINDOW "frmTestBorder" CONTROL "Button_2" PENWIDTH 3 UPCOLOR 1 DOWNCOLOR 0
DRAW BORDER WINDOW "frmTestBorder" CONTROL "Button_3" PENWIDTH 3 UPCOLOR 0 DOWNCOLOR 1

// DrawWideBorder( "frmTestBorder", "Image_1", { 164, 260, 155 } )
// DrawWideBorder( "frmTestBorder", "Label_5", { 164, 260, 155 } )
Return Nil

Function DrawWideBorder( cWindowName, cControlName, aColor, nSpace, nStep )
Local nWidness

HB_DEFAULT( @nSpace, 10 )
HB_DEFAULT( @nStep, 1 )

FOR nWidness := 1 TO nSpace STEP nStep
    DRAW BORDER WINDOW cWindowName CONTROL cControlName UPCOLOR aColor DOWNCOLOR aColor SPACE nWidness
    aColor[ 1 ] -= 10
    aColor[ 2 ] -= 10
    aColor[ 3 ] += 10
NEXT
* Problem :
*   results of below changes on color array gone away After that msg  :(

MsgDebug( aColor )
Return Nil

One suggestion is to have as option of rounded border at corner if is possible.

Thank you for your sharing and I also did not know about HB_DEFAULT(), thank again for sharing !

Post by **esgici** » Wed Sep 25, 2013 3:00 pm

Hi Serge

esgici wrote: I'm afraid that I couldn't tell

Sorry for inaccurate information

Anyway this message was added to see ( and demonstrate ) deterioration in the border

Happy HMG'ing
