Where is the "ON KEY" or _DefineHotKey() info stored ?

[trmpluym]

Ik like to save and restore all the current "ON KEY" information to a variable (Array?)

I figured out the command

#xcommand ON KEY ADD [ OF <parent> ] ACTION <action> ;

is translated into:

_DefineHotKey ( <"parent"> , 0 , VK_ADD , <{action}> )

But where is this info stored ? In the source it seems _HMG_SYSDATA [1] ?

Is it enough to save _HMG_SYSDATA [1] to a temporary array and later overwrite it back, for example ?

aOldKeys := _HMG_SYSDATA [1]

and afterwards

_HMG_SYSDATA [1] := aOldkeys

[Pablo César]

Hello Theo,

I do not know if you have already solved your case but I prepared this routine maybe helps to clarify and be also useful to others for releasing of all HotKey from a form:


HotKey.rar

Source files demo

(1.62 KiB) Downloaded 250 times


It would be also nice to count in HMG a GLOBAL hotkey definition, like HMEE.
All forms are considered at Events procedure. Easy and effective. Have you seen that ?
http://hmgextended.com/files/manual/4135.htm

In any case the example is also serves to them too, just inform the name of the form.

[trmpluym]

Hi Pablo,

Thanks for answering !

I studied your code but i do not (yet) understand the the way the hotkeys are stored.

Can you explain me the what the following system array's contain ?

_HMG_SYSDATA [3]
_HMG_SYSDATA [1]
_HMG_SYSDATA[4]
_HMG_SYSDATA[7]
_HMG_SYSDATA[8]

Theo

[Pablo César]

Hi Theo,

I will try to explain a bit and I hope you can understand. It's not because I know everything, far of this.

What is really nice when user do not desists and try by theirselves digging the HMG source codes and then could be learn a lot. If chare, all we win with that.

Do you know this function MsgDebug ?
Please, do not make hurry up in my question.
I will answer, in place: I use a lot more than debugger, very pratical and fast.

When you make me this question:

Can you explain me the what the following system array's contain ?

_HMG_SYSDATA [3]
_HMG_SYSDATA [1]
_HMG_SYSDATA[4]
_HMG_SYSDATA[7]
_HMG_SYSDATA[8]

1. IMHO, the maining it's very wide and comprehensive these vectors you mentioned and I'll show you with this example:
   http://hmgforum.com/viewtopic.php?p=50376#p50376

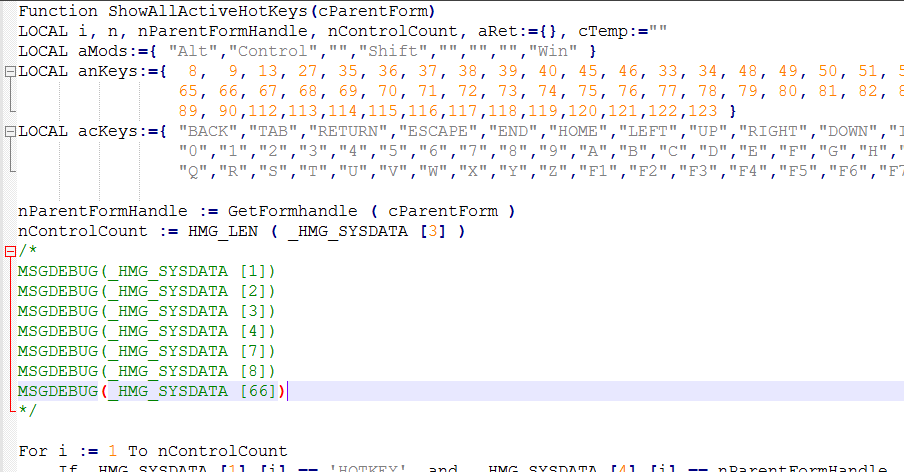

2. And now with this other (just remove the characters as comments (here's green color):





Different results, doesn't it ?

Ok. Lets go to yours questions.
I am to blame from begining, because I should have just limited myself to answering your question.
I wanted to be more extensive and with that answer in this topic in another one that has there.

Ik like to save and restore all the current "ON KEY" information to a variable (Array?)

This is possible. You will see at \hmg.3.4.3\INCLUDE\i_keybd.ch file (where is being all HMG keys controls). There you also will see there is a COMMAND: STORE KEY <HMG_key> OF <parent> TO <baction> which it will assign to a variable (but this is not a normal variable, it's a CodeBlock type). i.e. Its has an ACTION and can not be displayed o simple readable like a character type.


I figured out the command

#xcommand ON KEY ADD [ OF <parent> ] ACTION <action> ;

is translated into:

_DefineHotKey ( <"parent"> , 0 , VK_ADD , <{action}> )

That's you right. Please note the define function has 4 arguments. Keep it for forward explanation.


But where is this info stored ? In the source it seems _HMG_SYSDATA [1] ?

Is it enough to save _HMG_SYSDATA [1] to a temporary array and later overwrite it back, for example ?

Yes, you are quite right. You will need the ACTION and three more arguments necessary to be stored. As you said in ARRAY, but not tempory. Must be PRIVATE, I guess. The action for HOTKEY control at HMG is saved/stored at _HMG_SYSDATA[ 6 ][ Index_Control ].

I prepared another Demo for you. Now you need to see how I've done:


HotKeys_Demo2.rar

Source files - Demo2

(1.88 KiB) Downloaded 199 times


I hope I let you clear now. Sorry if my English it's not so good and also sorry if It seems (sure is not) that I have to underestimate on your knowledges.
When we can not express ourselves well, it leaves a sea of doubts. Maybe I have been repetitive or very extensive in my explanation, sorry for that.
But hopefully it was worth it for you to understand more about HotKeys.

Kevin Carmody, has prepared a large HotKey definition and according to Claudio is being release at next HMG version.
