After identifying with Right-Button clicked on Grid column, it's easy to implement personalized ContextMenu:
Code: Select all
/*
Grid Events Demo
Demo2.prg - ContextMenu and ToolTip for each Grid column
Enhanced by Pablo César Arrascaeta
On March 7th, 2015
*/
#include <hmg.ch>
Function Main()
Private cMsg, aRows [21] [3]
aRows [1] := {'Simpson', 'Homer', '555-5555'}
aRows [2] := {'Mulder', 'Fox', '324-6432'}
aRows [3] := {'Smart', 'Max', '432-5892'}
aRows [4] := {'Grillo', 'Pepe', '894-2332'}
aRows [5] := {'Kirk', 'James', '346-9873'}
aRows [6] := {'Barriga', 'Carlos', '394-9654'}
aRows [7] := {'Flanders', 'Ned', '435-3211'}
aRows [8] := {'Smith', 'John', '123-1234'}
aRows [9] := {'Pedemonti','Flavio', '000-0000'}
aRows [10] := {'Gomez', 'Juan', '583-4832'}
aRows [11] := {'Fernandez','Raul', '321-4332'}
aRows [12] := {'Borges', 'Javier', '326-9430'}
aRows [13] := {'Alvarez', 'Alberto', '543-7898'}
aRows [14] := {'Gonzalez', 'Ambo', '437-8473'}
aRows [15] := {'Batistuta','Gol', '485-2843'}
aRows [16] := {'Vinazzi', 'Amigo', '394-5983'}
aRows [17] := {'Pedemonti','Flavio', '534-7984'}
aRows [18] := {'Samarbide','Armando', '854-7873'}
aRows [19] := {'Pradon', 'Alejandra','???-????'}
aRows [20] := {'Reyes', 'Monica', '432-5836'}
aRows [21] := {'Fernández','Vicente', '000-0000'}
DEFINE WINDOW Form_1 ;
AT 0,0 ;
WIDTH 426 ;
HEIGHT 395 ;
TITLE 'Grid Events Demo - ContextMenu for each column' ;
MAIN NOSIZE
DEFINE STATUSBAR FONT "Courier New" SIZE 9
STATUSITEM PadC("",75)
END STATUSBAR
@ 10,10 GRID Grid_1 ;
WIDTH 400 ;
HEIGHT 330 ;
HEADERS {'Column 1','Column 2','Column 3'} ;
WIDTHS {120,120,120} ;
TOOLTIP "ToolTip for Grid" ;
ON CHANGE Define_Column_ToolTip("Form_1","Grid_1") ;
ITEMS aRows ;
VALUE {1,1} ;
CELLNAVIGATION
Define_Control_Context_Menu("Form_1","Grid_1",1) // Needs to start definition for this control
END WINDOW
// CREATE EVENT PROCNAME Check_Grid_Events HWND Form_1.Grid_1.HANDLE
SET CONTROL Grid_1 OF Form_1 ONMOUSEEVENT Check_Grid_Events()
CENTER WINDOW Form_1
ACTIVATE WINDOW Form_1
Return Nil
Function Check_Grid_Events()
Local aCell, nMsg := EventMsg()
Static cCtrlSelected:=""
If nMsg == WM_RBUTTONDOWN
aCell:=GetCellClicked("Form_1","Grid_1")
SetProperty("Form_1","Grid_1","Value",aCell)
Define_Control_Context_Menu("Form_1","Grid_1",aCell[2])
Endif
Return Nil
Function GetCellClicked(cForm,cControl)
Local aRet, nIndex:=GetControlIndex(cControl,cForm)
Local aCellData:=_GetGridCellData(nIndex)
aRet:={aCellData[1],aCellData[2]}
Return aRet
Function Define_Control_Context_Menu(cParentForm,cControl,nColumn)
If IsControlContextMenuDefined( cControl, cParentForm )
ReleaseControlContextMenu( cControl, cParentForm )
Endif
Do Case
Case nColumn=1
DEFINE CONTROL CONTEXTMENU &cControl OF &cParentForm
ITEM "Option 1 (Column 1)" ACTION MsgInfo("Grid Column 1 | Option 1")
ITEM "Option 2 (Column 1)" ACTION MsgInfo("Grid Column 1 | Option 2")
ITEM "Option 3 (Column 1)" ACTION MsgInfo("Grid Column 1 | Option 3")
END MENU
Case nColumn=2
DEFINE CONTROL CONTEXTMENU &cControl OF &cParentForm
ITEM "Option 1 (Column 2)" ACTION MsgInfo("Grid Column 2 | Option 1")
ITEM "Option 2 (Column 2)" ACTION MsgInfo("Grid Column 2 | Option 2")
ITEM "Option 3 (Column 2)" ACTION MsgInfo("Grid Column 2 | Option 3")
END MENU
Case nColumn=3
DEFINE CONTROL CONTEXTMENU &cControl OF &cParentForm
ITEM "Option 1 (Column 3)" ACTION MsgInfo("Grid Column 3 | Option 1")
ITEM "Option 2 (Column 3)" ACTION MsgInfo("Grid Column 3 | Option 2")
ITEM "Option 3 (Column 3)" ACTION MsgInfo("Grid Column 3 | Option 3")
END MENU
EndCase
Return Nil
Function Define_Column_ToolTip(cParentForm,cControl)
Local nColumn:=GetProperty(cParentForm,cControl,"CellColFocused")
Do Case
Case nColumn=1
_SetToolTip(cControl,cParentForm,"ToolTip Column 1")
Case nColumn=2
_SetToolTip(cControl,cParentForm,"ToolTip Column 2")
Case nColumn=3
_SetToolTip(cControl,cParentForm,"ToolTip Column 3")
EndCase
Return Nil

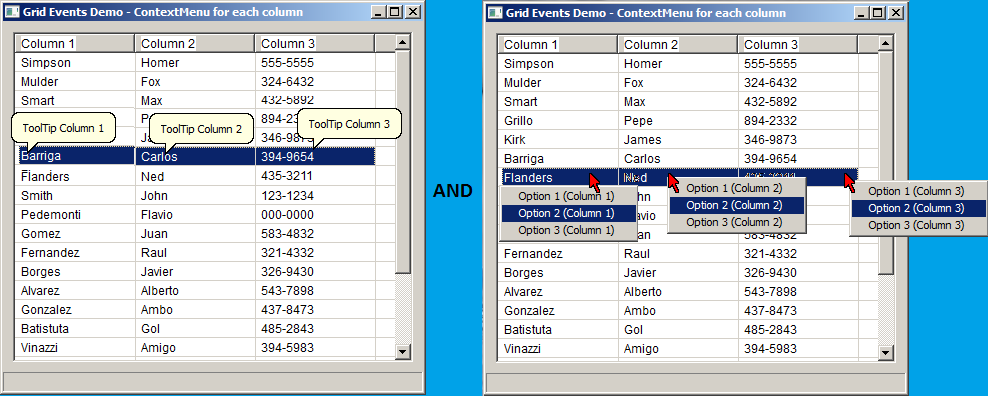

I've included a personalized ToolTip for each column of grid too. It's not the best way, but at least I got something to show. I make this thru ON CHANGE event.
