label at runtime

Moderator: Rathinagiri

User avatar
mol
Posts: 3436
Joined: Thu Sep 11, 2008 5:31 am
Location: Myszków, Poland
Has thanked: 279 times
Been thanked: 177 times
Contact:

Re: label at runtime

Post by mol »

It does not work :-(

edk
Posts: 617
Joined: Thu Oct 16, 2014 11:35 am
Location: Poland
Has thanked: 150 times
Been thanked: 552 times

Post by edk »

Here is working demo ;)

Code: Select all

/*
 * HMG - Harbour Win32 GUI library Demo
 *
 * Copyright 2008 Roberto Lopez <mail.box.hmg@gmail.com>
 * http://www.hmgforum.com//
*/

#include "hmg.ch"

Function Main
Local aRows [20] [3]

	aRows [1]	:= {'Simpson','Homer','555-5555'}
	aRows [2]	:= {'Mulder','Fox','324-6432'}
	aRows [3]	:= {'Smart','Max','432-5892'}
	aRows [4]	:= {'Grillo','Pepe','894-2332'}
	aRows [5]	:= {'Kirk','James','346-9873'}

	DEFINE WINDOW Form_1 ;
		AT 0,0 ;
		WIDTH 640 HEIGHT 480 ;
		TITLE 'HMG Demo' ;
		MAIN

		DEFINE TAB Tab_1 ;
			AT 10,10 ;
			WIDTH 600 ;
			HEIGHT 400 ;
			VALUE 1 ;
			TOOLTIP 'Tab Control'

			PAGE 'Page 1'

			      @ 100,250 BUTTON Button_1 CAPTION "Add Label On Page 4" WIDTH 150 HEIGHT 50 ACTION Make_label()
			      @ 180,250 BUTTON Button_2 CAPTION "Release Label On Page 4" WIDTH 150 HEIGHT 50 ACTION IF (IsControlDefined (NewLabel2 , Form_1) , DoMethod('Form_1','NewLabel2','Release') , Nil )

			END PAGE

			PAGE 'Page &2'

				DEFINE RADIOGROUP R1
					ROW	100
					COL	100
					OPTIONS	{ '1','2','3' }
					VALUE	1
				END RADIOGROUP

			END PAGE

			PAGE 'Page 3'

				@ 100,250 SPINNER Spinner_1 ;
				RANGE 0,10 ;
				VALUE 5 ;
				WIDTH 100 ;
				TOOLTIP 'Range 0,10' ;
				ON CHANGE PlayBeep()

			END PAGE

			PAGE 'Page 4'

				@ 50,50 GRID Grid_1 ;
					WIDTH 200 ;
					HEIGHT 330 ;
					HEADERS {'Last Name','First Name','Phone'} ;
					WIDTHS {140,140,140};
					ITEMS aRows ;
					VALUE 1

			END PAGE

		END TAB


	END WINDOW

	Form_1.Center

	Form_1.Activate

Return Nil


***********************
FUNCTION Make_label()
 define label NewLabel2
			parent Form_1
			row 150
			col 300
			backColor {96,96,96}
			value "BAR"
			height 80
			width  30
end label
//_AddTabControl ( TabName , ControlName , ParentForm , PageNumber , Row , Col )
_AddTabControl ( 'Tab_1' , 'NewLabel2' , 'Form_1' , 4 , 150 , 300 )
RETURN


User avatar
Rathinagiri
Posts: 5351
Joined: Tue Jul 29, 2008 6:30 pm
DBs Used: MariaDB, SQLite, SQLCipher and MySQL
Location: Sivakasi, India
Has thanked: 212 times
Been thanked: 232 times
Contact:

Post by Rathinagiri »

It is very simple.

First define the control having the parent as the same window where the tab resides.

Then use the following method to add the control the the tab page.

Code: Select all

<WindowName>.<ControlName>.AddControl ( ControlName , nPagenumber , nRow , nCol )
East or West HMG is the Best.
South or North HMG is worth.
...the possibilities are endless.

User avatar
mol
Posts: 3436
Joined: Thu Sep 11, 2008 5:31 am
Location: Myszków, Poland
Has thanked: 279 times
Been thanked: 177 times
Contact:

Post by mol »

Thanks guys!

User avatar
mol
Posts: 3436
Joined: Thu Sep 11, 2008 5:31 am
Location: Myszków, Poland
Has thanked: 279 times
Been thanked: 177 times
Contact:

Post by mol »

hI!
I found a bug in BosTaurus BT_DrawTextEx function
I want to print centered text rotated by 90 deg.
But, when changing length of text , it's position is not centered in vertical axis, it's always always positioned at the begin row, bet column of text is changed.
I think it should be opaque

User avatar
jairpinho
Posts: 396
Joined: Mon Jul 18, 2011 5:36 pm
Location: Rio Grande do Sul - Brasil
Has thanked: 5 times
Been thanked: 22 times
Contact:

Post by jairpinho »

mol wrote:
Wed Nov 11, 2020 10:11 am
hI!
I found a bug in BosTaurus BT_DrawTextEx function
I want to print centered text rotated by 90 deg.
But, when changing length of text , it's position is not centered in vertical axis, it's always always positioned at the begin row, bet column of text is changed.
I think it should be opaque
Marek can post the code he used
Jair Pinho
HMG ALTA REVOLUÇÃO xBASE
HMG xBASE REVOLUTION HIGH
http://www.hmgforum.com.br

User avatar
mol
Posts: 3436
Joined: Thu Sep 11, 2008 5:31 am
Location: Myszków, Poland
Has thanked: 279 times
Been thanked: 177 times
Contact:

Post by mol »

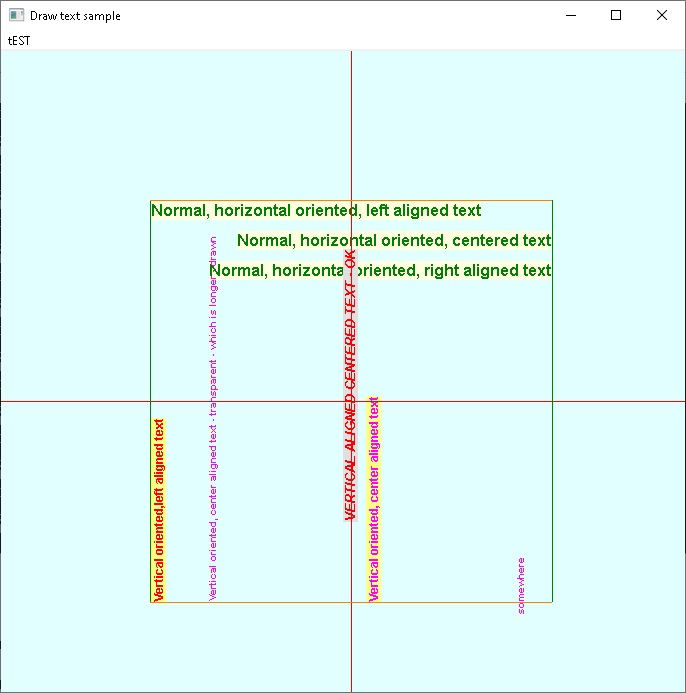

I prepared some code, maybe I'm wrong, but centering text is with bug.
Also, vertical orientation is bad.

Code: Select all

#include <hmg.ch>

*----------

function main

	DEFINE WINDOW F1 ;
		AT 0,0 ;
		WIDTH 700 HEIGHT 700 ;
		TITLE 'Draw text sample' ;
		MAIN ;
		backcolor {225,255,255} ;
		ON PAINT DoTest()

		DEFINE MAIN MENU OF F1
			DEFINE POPUP "tEST"
				MENUITEM "Test" action NIL
			END POPUP
		END MENU

	END WINDOW

	CENTER WINDOW F1

	ON KEY ESCAPE OF F1 ACTION F1.RELEASE
	ACTIVATE WINDOW F1
return

*----------------------
function DoTest

	local nMiddleRow
	local nMiddleCol
	LOCAL hDC, BTstruct

	hDC := BT_CreateDC ("F1", BT_HDC_INVALIDCLIENTAREA, @BTstruct)

	nMiddleRow := F1.Height/2
	nMiddleCol := F1.Width/2

	// print cross in the middle of the form
	DRAW LINE IN WINDOW F1 at nMiddleRow, 0 to nMiddleRow, F1.Width PENCOLOR RED PENWIDTH 1
	DRAW LINE IN WINDOW F1 at 0, nMiddleCol  to F1.Height, nMiddleCol PENCOLOR RED PENWIDTH 1

	//print vertical margins
	DRAW LINE IN WINDOW F1 at nMiddleRow-201, nMiddleCol-201  to nMiddleRow+201, nMiddleCol-201 PENCOLOR {0,128,0} PENWIDTH 1
	DRAW LINE IN WINDOW F1 at nMiddleRow-201, nMiddleCol+201  to nMiddleRow+201, nMiddleCol+201 PENCOLOR {0,128,0} PENWIDTH 1

	// draw text in normal -  horizontal orientation
	// left aligned
	BT_DrawTextEx(hDC,;
			nMiddleRow-200, nMiddleCol-200,;			// row, col
			400, 20,;								// width, height
			"Normal, horizontal oriented, left aligned text",;
			"ARIAL", 12,;
			{0,128,0}, {255,255,224},;
			BT_TEXT_OPAQUE + BT_TEXT_BOLD,;
			BT_TEXT_LEFT + BT_TEXT_TOP,;
			BT_TEXT_NORMAL_ORIENTATION)

	// draw text in normal -  horizontal orientation
	// center aligned
	BT_DrawTextEx(hDC,;
			nMiddleRow-170, nMiddleCol-200,;			// row, col
			400, 20,;								// width, height
			"Normal, horizontal oriented, centered text",;
			"ARIAL", 12,;
			{0,128,0}, {255,255,224},;
			BT_TEXT_OPAQUE + BT_TEXT_BOLD,;
			BT_TEXT_CENTER + BT_TEXT_TOP,;
			BT_TEXT_NORMAL_ORIENTATION)

	// draw text in normal -  horizontal orientation
	// right aligned
	BT_DrawTextEx(hDC,;
			nMiddleRow-140, nMiddleCol-200,;			// row, col
			400, 20,;								// width, height
			"Normal, horizontal oriented, right aligned text",;
			"ARIAL", 12,;
			{0,128,0}, {255,255,224},;
			BT_TEXT_OPAQUE + BT_TEXT_BOLD,;
			BT_TEXT_RIGHT + BT_TEXT_TOP,;
			BT_TEXT_NORMAL_ORIENTATION)

	//print horizontal margins
	DRAW LINE IN WINDOW F1 at nMiddleRow-201, nMiddleCol-201  to nMiddleRow-201, nMiddleCol+201 PENCOLOR {255,128,0} PENWIDTH 1
	DRAW LINE IN WINDOW F1 at nMiddleRow+201, nMiddleCol-201  to nMiddleRow+201, nMiddleCol+201 PENCOLOR {255,128,0} PENWIDTH 1

	// draw text in vertical orientation
	// left aligned
	BT_DrawTextEx(hDC,;
			nMiddleRow+200, nMiddleCol-200,;			// row, col
			400, 20,;								// width, height
			"Vertical oriented,left aligned text",;
			"ARIAL", 9,;
			{255,0,0}, {255,255,128},;
			BT_TEXT_OPAQUE + BT_TEXT_BOLD,;
			BT_TEXT_LEFT + BT_TEXT_TOP,;
			BT_TEXT_VERTICAL_ASCENDANT)

	// draw text in vertical orientation
	// center aligned
	BT_DrawTextEx(hDC,;
			nMiddleRow+200, nMiddleCol-180,;			// row, col
			400, 20,;								// width, height
			"Vertical oriented, center aligned text",;
			"ARIAL", 9,;
			{255,0,255}, {255,255,128},;
			BT_TEXT_OPAQUE + BT_TEXT_BOLD,;
			BT_TEXT_CENTER + BT_TEXT_TOP,;
			BT_TEXT_VERTICAL_ASCENDANT)

	// the same coordinates as above, but longer text
	BT_DrawTextEx(hDC,;
			nMiddleRow+200, nMiddleCol-180,;			// row, col
			400, 20,;								// width, height
			"Vertical oriented, center aligned text - transparent - which is longer - drawn somewhere",;
			"ARIAL", 8,;
			{255,0,255}, {255,255,128},;
			BT_TEXT_TRANSPARENT + BT_TEXT_BOLD,;
			BT_TEXT_CENTER + BT_TEXT_TOP,;
			BT_TEXT_VERTICAL_ASCENDANT)

	// draw text in vertical orientation
	// right aligned
	BT_DrawTextEx(hDC,;
			nMiddleRow+200, nMiddleCol+200,;			// row, col
			400, 20,;								// width, height
			"Vertical oriented, right aligned text",;
			"ARIAL", 9,;
			{0,0,255}, {255,255,128},;
			BT_TEXT_OPAQUE + BT_TEXT_BOLD,;
			BT_TEXT_RIGHT + BT_TEXT_TOP,;
			BT_TEXT_VERTICAL_ASCENDANT)

	// tho only one way to print vertical aligned
	// centered text

	w := BT_DrawTextSize(hDC,"VERTICAL ALIGNED CENTERED TEXT", "ARIAL", 10, BT_TEXT_BOLD + BT_TEXT_ITALIC)

	BT_DrawTextEx(hDC,;
			nMiddleRow-200 + w[1]/2 + 400/2, nMiddleCol -w[2]/2,;
			400, 20,;
			"VERTICAL ALIGNED CENTERED TEXT - OK",;
			"ARIAL", 10, {255,0,0}, {224,224,224},;
			BT_TEXT_OPAQUE   + BT_TEXT_BOLD + BT_TEXT_ITALIC,;
			BT_TEXT_LEFT+BT_TEXT_TOP,;
			BT_TEXT_VERTICAL_ASCENDANT)

	BT_DeleteDC (BTstruct)
return
Attachments

User avatar
gfilatov
Posts: 779
Joined: Fri Aug 01, 2008 5:42 am
Location: Ukraine
Has thanked: 33 times
Been thanked: 450 times
Contact:

Post by gfilatov »

Hello Marek,

Thanks for your sample :!:

Please replace in your header file BosTaurus.CH the following line
#define BT_TEXT_CENTER 6
with
#define BT_TEXT_CENTER 1
and try to start your sample with above modification :idea:

It should fix the text center alignment in the horizontal orientation.
Kind Regards,
Grigory Filatov

"Everything should be made as simple as possible, but no simpler." Albert Einstein
