CardReader

Post by serge_girard »

Hello again,


Anybody any idea how to read the contence of a (Belgian) ID-card from a cardreader.
(eID-viewer --> beid35gui.exe).

I need to capture name, address and ID.

Thx in advance for showing the way !


Serge
There's nothing you can do that can't be done...
User avatar
danielmaximiliano
Posts: 2611
Joined: Fri Apr 09, 2010 4:53 pm
Location: Argentina
Contact:

Re: CardReader

Post by danielmaximiliano »

Hola Serge :
aqui le encontre la solución, tiene todo lo necesario para trabajar con EID Library.

Hi Serge:
I found the solution here, has everything you need to work with EID Library.
http://sourceforge.net/projects/eidnative/?source=dlp

if you need other help just tell

desde/ From Buenos Aires Argentina.
*´¨)
¸.·´¸.·*´¨) ¸.·*¨)
(¸.·´. (¸.·` *
.·`. Harbour/HMG : It's magic !
(¸.·``··*

Saludos / Regards
DaNiElMaXiMiLiAnO

Whatsapp. := +54901169026142
Telegram Name := DaNiElMaXiMiLiAnO
User avatar
serge_girard
Posts: 3162
Joined: Sun Nov 25, 2012 2:44 pm
DBs Used: 1 MySQL - MariaDB
2 DBF
Location: Belgium
Contact:

Re: CardReader

Post by serge_girard »

Hello,

danielmaximiliano thx, I will take a look tonite!

S
There's nothing you can do that can't be done...
User avatar
danielmaximiliano
Posts: 2611
Joined: Fri Apr 09, 2010 4:53 pm
Location: Argentina
Contact:

Re: CardReader

Post by danielmaximiliano »

serge_girard wrote:Hello,

danielmaximiliano thx, I will take a look tonite!

S
Install Library EID. Use CallDll32
*´¨)
¸.·´¸.·*´¨) ¸.·*¨)
(¸.·´. (¸.·` *
.·`. Harbour/HMG : It's magic !
(¸.·``··*

Saludos / Regards
DaNiElMaXiMiLiAnO

Whatsapp. := +54901169026142
Telegram Name := DaNiElMaXiMiLiAnO
User avatar
serge_girard
Posts: 3162
Joined: Sun Nov 25, 2012 2:44 pm
DBs Used: 1 MySQL - MariaDB
2 DBF
Location: Belgium
Contact:

Re: CardReader

Post by serge_girard »

Daniel,

I installed EID lib.
How do I tell HMG Ide to use EIDReader.lib?

Then I do something like: CallDll32("InitReader", "EIDReader.dll", parameters...) ?

Thanks for helping!


Serge
There's nothing you can do that can't be done...
User avatar
danielmaximiliano
Posts: 2611
Joined: Fri Apr 09, 2010 4:53 pm
Location: Argentina
Contact:

Re: CardReader

Post by danielmaximiliano »

serge_girard wrote:Daniel,

I installed EID lib.
How do I tell HMG Ide to use EIDReader.lib?

Then I do something like: CallDll32("InitReader", "EIDReader.dll", parameters...) ?

Thanks for helping!


Serge
Hi Serge:

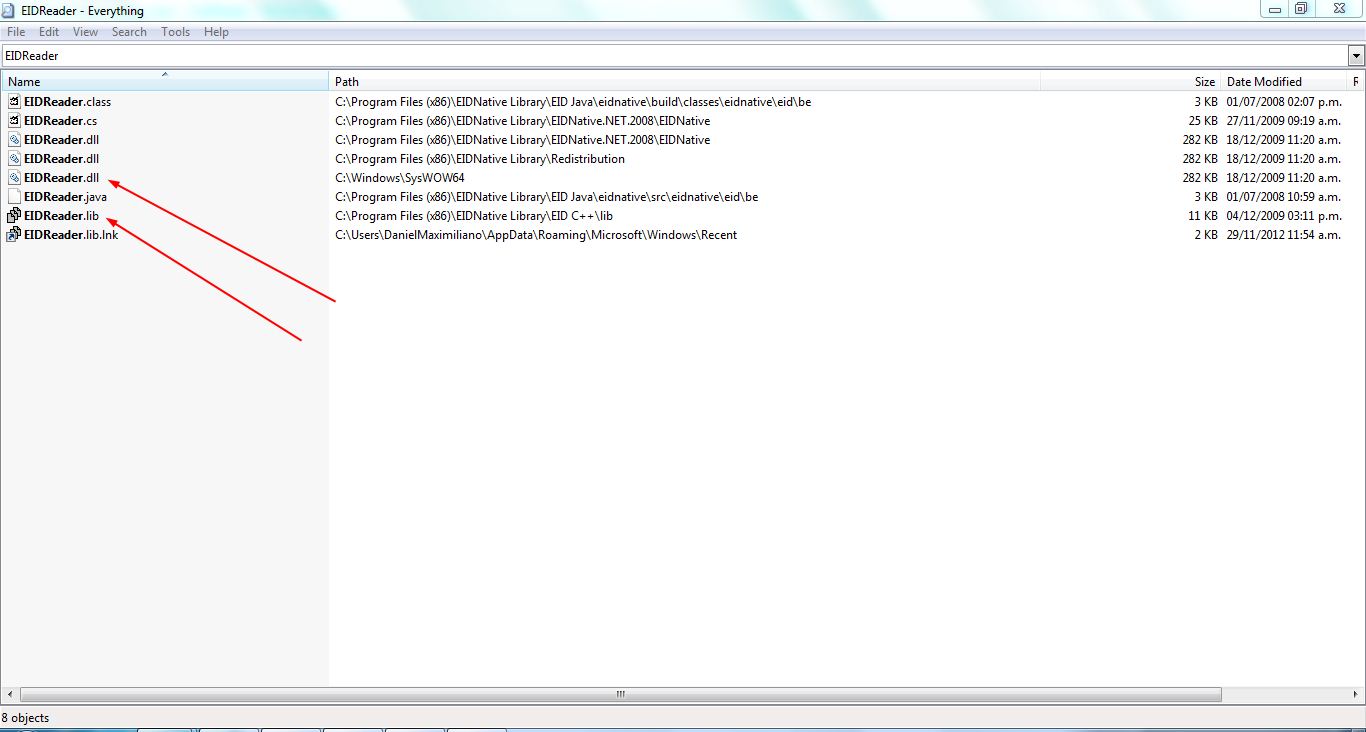

in C:\Program Files (x86)\EIDNative Library\Documentation
Several aid .CHM containing various functions , can make calls as indicated CallDll32 mendiante you or treat it as COM object (ActiveX), I have a device; such as that used to help better.

Read C:\Program Files (x86)\EIDNative Library\EID VB6\EIDNative.bas to better interpret the functions
*´¨)
¸.·´¸.·*´¨) ¸.·*¨)
(¸.·´. (¸.·` *
.·`. Harbour/HMG : It's magic !
(¸.·``··*

Saludos / Regards
DaNiElMaXiMiLiAnO

Whatsapp. := +54901169026142
Telegram Name := DaNiElMaXiMiLiAnO
User avatar
serge_girard
Posts: 3162
Joined: Sun Nov 25, 2012 2:44 pm
DBs Used: 1 MySQL - MariaDB
2 DBF
Location: Belgium
Contact:

Re: CardReader

Post by serge_girard »

Daniel,


This is all new to me and to tell the truth: I don't quite well understand it.

The EIdReader.DLL is in the windows directory.

What about EIDReader.LIB ??


When I do:
par = 0
A = CallDll32("InitReader", "EIDReader.dll", par)
A will get the value 257

Can you give a small example on how some of the function are to be called?

Thx !

Serge
There's nothing you can do that can't be done...
User avatar
danielmaximiliano
Posts: 2611
Joined: Fri Apr 09, 2010 4:53 pm
Location: Argentina
Contact:

Re: CardReader

Post by danielmaximiliano »

serge_girard wrote:Daniel,


This is all new to me and to tell the truth: I don't quite well understand it.

The EIdReader.DLL is in the windows directory.

What about EIDReader.LIB ??


When I do:
par = 0
A = CallDll32("InitReader", "EIDReader.dll", par)
A will get the value 257

Can you give a small example on how some of the function are to be called?

Thx !

Serge
Hello Serge :

before initializing the first eID reader would bring a list of names connected readers.
after that connect the reader who would like to use.
try using the eID readers name, the same can be uploaded to the control COMBO and thus select from there.
so I have no idea if you use handler a third parameter as the library eID

Code: Select all

#include 'hmg.ch'
Function Main
Local aNames      := {}
Local cSelectName := ''
Local cFunction   := ''

aNames := CallDll32('GetReadersList', 'EIDReader.dll' )
If Len( aNames ) = 0
   MsgInfo( ' Not CardReader Installed ' , ' Message Information ' )
   Exit
Endif
cSelectName := aNames [ 1 ]
cFunction   := 'SelectReaderByName( ' + cSelectName + ' ) '
CallDll32( cFunction , 'EIDReader.dll' )

/*** Init ***/

CallDll32( 'InitReaderEx' , 'EIDReader.dll' )

/*** or Init ***/

CallDll32( 'InitReader' , 'EIDReader.dll' )

/* You code here. */

Return Nil
might have to make some modifications to the code, as I said before I have not a reader like to help you better.
*´¨)
¸.·´¸.·*´¨) ¸.·*¨)
(¸.·´. (¸.·` *
.·`. Harbour/HMG : It's magic !
(¸.·``··*

Saludos / Regards
DaNiElMaXiMiLiAnO

Whatsapp. := +54901169026142
Telegram Name := DaNiElMaXiMiLiAnO
User avatar
serge_girard
Posts: 3162
Joined: Sun Nov 25, 2012 2:44 pm
DBs Used: 1 MySQL - MariaDB
2 DBF
Location: Belgium
Contact:

Re: CardReader

Post by serge_girard »

Thx Daniel,

I'm sure this will help a lot.

When it's functioning I will suggest it to the SAMPLES !


Bye,


Serge
There's nothing you can do that can't be done...
User avatar
serge_girard
Posts: 3162
Joined: Sun Nov 25, 2012 2:44 pm
DBs Used: 1 MySQL - MariaDB
2 DBF
Location: Belgium
Contact:

Re: CardReader

Post by serge_girard »

Hi Daniel,

I'm on my way but a few things are stille strange to me.

I can retrieve the name of the card-reader, check if a card is inserted and check if correct-card is inserted.

But when it comes to retrieving card-data: nothing.

I think the problem is the parameters:


Declare Function ReadAddress Lib "EIDReader.dll" (ByRef pData As EIDAddress) As Boolean
Type EIDAddress
street As String * EID_MAX_STREET_LEN
zip As String * EID_MAX_ZIP_LEN
municipality As String * EID_MAX_MUNICIPALITY_LEN
End Type


// EID address information, stored on the card
EID_Address =
record
// Street name
street : array[0..EID_MAX_STREET_LEN] of AnsiChar;
// ZIP code
zip : array[0..EID_MAX_ZIP_LEN] of AnsiChar;
// Municipality
municipality : array[0..EID_MAX_MUNICIPALITY_LEN] of AnsiChar;
end;

Now I do: (which is working fine)

var = CallDll32( 'IsEIDCard' , 'EIDReader.dll' ) // this work OK
IF var == -1
msginfo('IsEIDCard' , 'OK')
ELSE
msginfo('NO IsEIDCard' , 'NOK')
ENDIF

num_readers = CallDll32( 'GetReadersCount' , 'EIDReader.dll' ) // this work OK
msginfo(str(num_readers,3,0) + ' CountReaders' , 'OK')

But for ADDRESS I trief similar manners but none works.
Any idea how to construct the parameterslist?

Greetings from Belgium,
Serge
